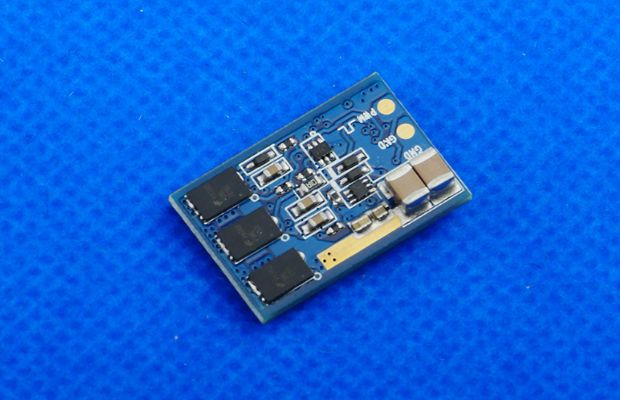

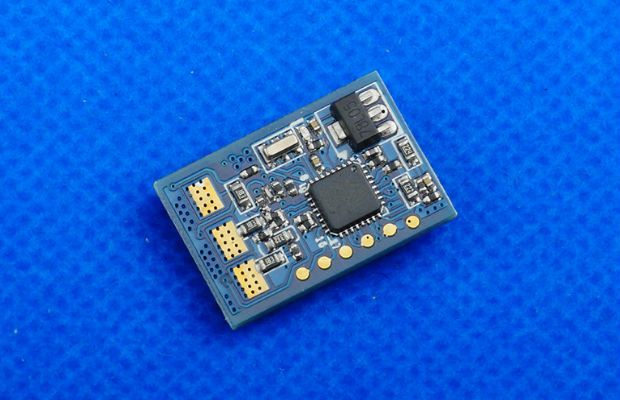

SuperN 10A 2-3S Mini Electric Speed Controller for Mini Multicopters (Simonk Firmware) - DIY Version.

There are two versions for this ESC, one is finished version with wires soldered in place, another is DIY version, wires of DIY version need to be soldered by customers as needed.

share


This product is unavailable.
    • Firmware: Simonk
    • Continuous working current: 12A
    • Peak current: 15A (for 10 seconds)
    • BEC output: No
    • Power input: 2-3S (does NOT support 4S or higher)
    • Weight: 1.5g without wires; 6g with wires

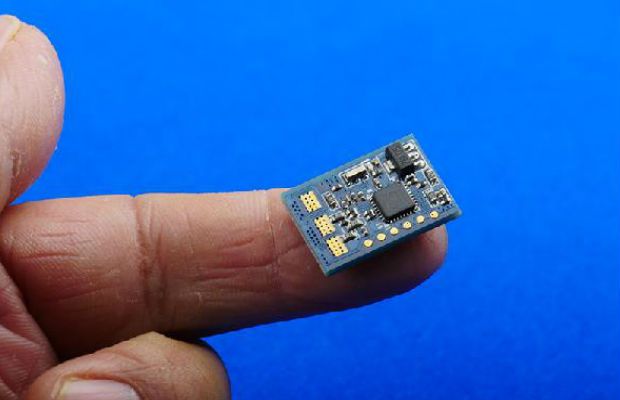

    • Dimension: 20 x 15mm
    • Supports up to 400-490hz input signal

    Tested with DJI, NAZE32, CC and MWC flight controllers, and motor speed up to 25,000RPM.

    Note: According to our test, this ESC doesn't work well with Sunnysky 2204 motors currently.

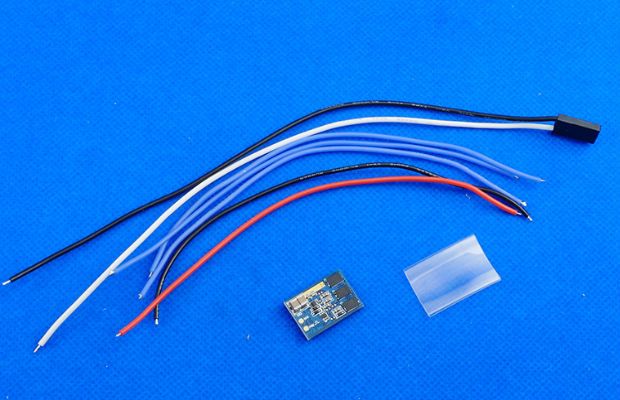

    • 1   ESC
    • 1  wire part bag
    • 1  heat shrinking tube
