DALRC 5.8G 600mW 32Ch A/V Transmitting (TX) Module - Black, 12V Output

Features:

  •  600mW  power
  •  32 channels
  •  Long distrance
  •  Compact size (37 x 22 x 8.5mm)
  •  Light weight, 11g only
  •  Wide power input: 7-26V
  •  With 12V output

share


This product is unavailable.

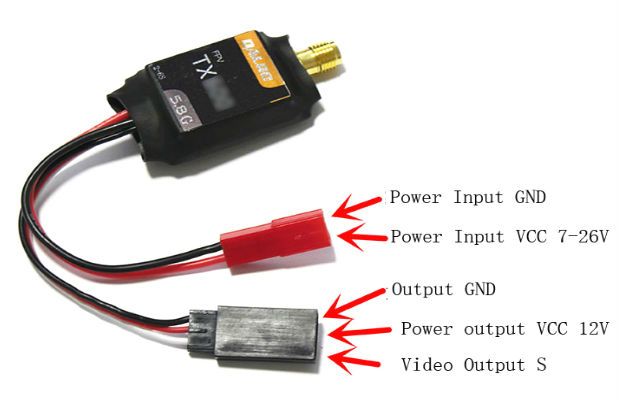

    • Antenna connection: RP-SMA, jack (module side )
    • Power input: 7-26V (3S recommended)
    • Transmitting power: 27DBm (Max)
    • Working current: 350mA (@12V) ; 700mA when charging Gopro camera

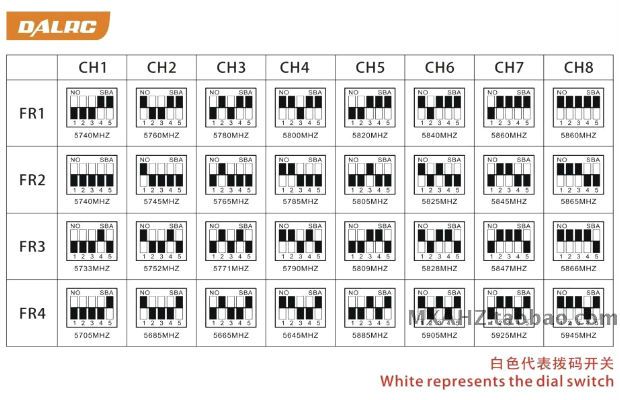

    • Channel number: 32
    • Dimension: 37 x 22 x 8.5mm
    • Net weight: 11g

    *Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

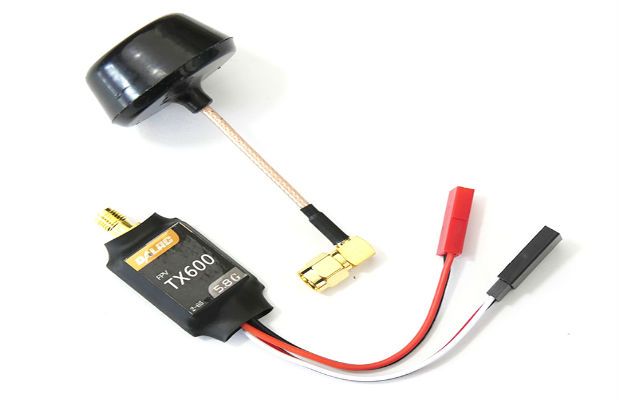

  • Includes:

    • 1  transmitting unit (TX)
    • 1  antenna

    Requires:

    • 1  receiver (RX)
