HobbyEagle A3 Mini 6-axis Gyro Flight Controller/ Stabilizer

Looking for a high-performance and functional 6-axis mini gyro and stabilizer for your R/C airplanes? Look no further than the A3 Mini!

With its mini size and 4.8g weight, the A3 Mini is perfect for small electric airplanes. It supports both PPM and multi-protocol digital serial receivers, making it compatible with most single line mini receivers on the market.

Thanks to its 32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware platform, and new firmware solution, the A3 Mini provides more reliable performance than ever before. And with 6 flight modes, including GYRO-OFF, NORMAL, LOCK, ANGLE, LEVEL, and HOVER modes, you can customize your RC airplane experience to suit your needs.

The A3 Mini also supports Flying-wing (for Delta-wing), V-Tail, Remote Master Gain, and more, making it incredibly versatile. And with firmware upgradable and Programming Card supported, you can always stay up-to-date with the latest features and capabilities.

share


$134.80
AUD $134.80
    • Main Controller: 32-bit MCU
    • Sensor: High-precision MEMS 6-axis sensor
    • Operating Voltage: DC 3.6V - 8.4V
    • Operating Current: 20mA@5V
    • Size: 30×19.5×7.5mm (L×W×H)
    • Weight: 4.8g (excluding wires)
    • Serial Receiver Protocols Supported:
    • PPM Receiver
    • For Futaba S.Bus (compatible with FrSky SBUS, RadioLink SBUS and WFLY WBUS)
    • Spektrum DSM/DSMX 1024 Satellite Receiver
    • Spektrum DSM/DSMX 2048 Satellite Receiver
    • Spektrum SRXL
    • Multiplex SRXL / JR XBUS Mode B
    • Graupner SUMD
    • FlySky iBus



    Receiver Connection:

    A3 Mini supports PPM and multi-protocol digital serial receivers which allows you to connect the receiver to the gyro with one single wire on the slot [Serial RX]. Depending upon the receiver type selected, A3 Mini uses the preset channel assignment to recognize the channels from the receiver. Check if your radio transmits the channels in the correct order. After each time you have changed the receiver type the current channel settings will be reset to the default. Choose "None" for those channels you do not use.

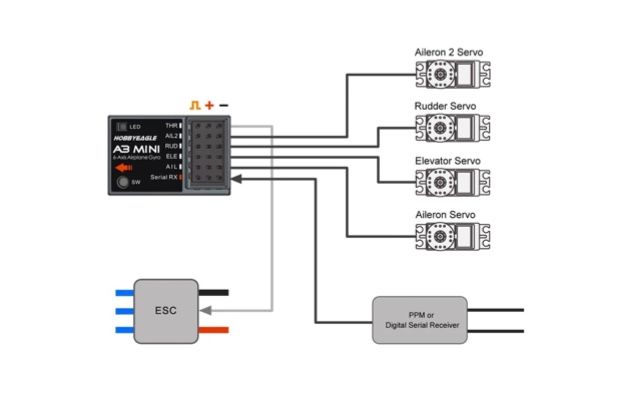

    Servo Connection:

    A3 Mini supports Standard Fixed-wing, Flying-wing (for Delta-wing) and V-Tail.

    • 1x HobbyEagle A3 Mini Flight Controller
    • 1x USB Adapter
    • 2x Data Cables
