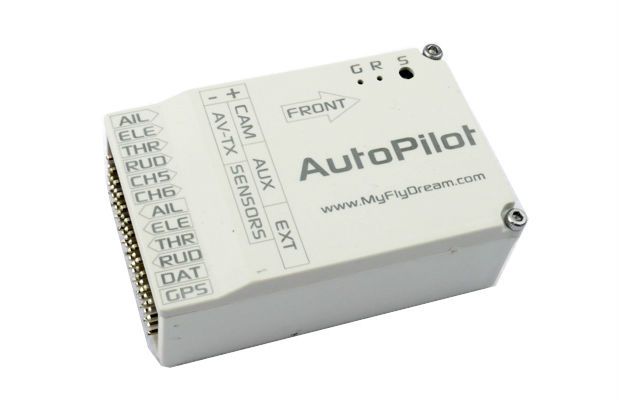

MFD AutoPilot Unit

• Specs
• Box Includes
• Shipping Details

• • 1. All In One design. AutoAntennaTracking/AHRS based AutoPilot(3-Axis gyro+accelerometer
  • +magnetic compass + barometer)/Advance OSD/Power module/... are all built in this small,light unit.
  • 2. Fully compatible with AAT system
  • 3. Rich extension ports for Sonar/Air Speed Sensor/Other accessories.
  • 4. AHRS is build-in with Anti-vibration design, easy to install on the plane without any damper.
  • 5. Compatible with MAVLink protocol. Support APM Planner GroundStation software. You can synchronize the waypoints by clicking one button. There are also some GS Apps for mobile phones available.
  • 6. Support PPM/PWM input.
  • 7. All functions/parameters can be accessed by the transmitter and OSD menu.
  • 8. The first AutoPilot transmitting downlink data for tracking via both VIDEO and AUDIO signals.
  • 9. Shipped with customized shielded cables for camera/video transmitter, 10Hz LS20033GPS, 100A current sensor and USB programmer for firmware update. easy to setup.
• • TMFD AutoPilot unit x 1
  • LS20033 GPS x 1
  • 100A Current sensor x 1
  • Shielded cable set x 1
  • USB-TTL board for firware update x 1
