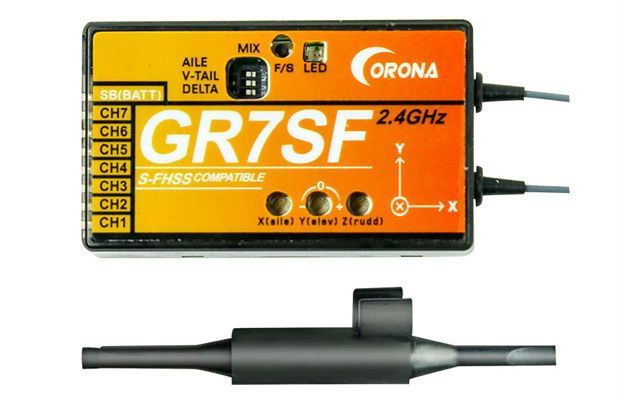

CORONA 2.4Ghz SFHSS 7-Channel Receiver GR7SF (Futaba compatible, W/Stability enhancing Gyro)
CORONA 2.4GHz S-FHSS Compatible Receiver is designed to use with FUTABA S-FHSS 2.4GHz transmitters, such as T6J,T8J,T10J and T14SG under S-FHSS protocol mode.
Mode supply: No mixer, Dual-aileron, V-tail mixer, Delta mixer
Independent simple gyro gain adjustment for Aileron, Elevator and Rudder
S.BUS output support expanding servo channels @the 8th channel
Support gyro function switch on and off in flying by Switching signal of CH5
· Turn on the S-FHSS transmitter
· Connect the battery to the receiver while pressing receiver's F/S button.
· Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.
