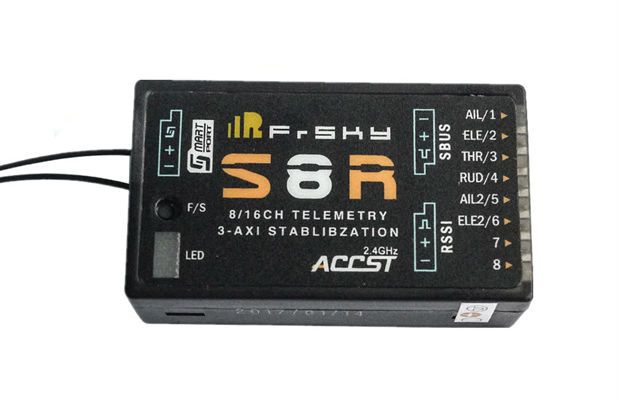

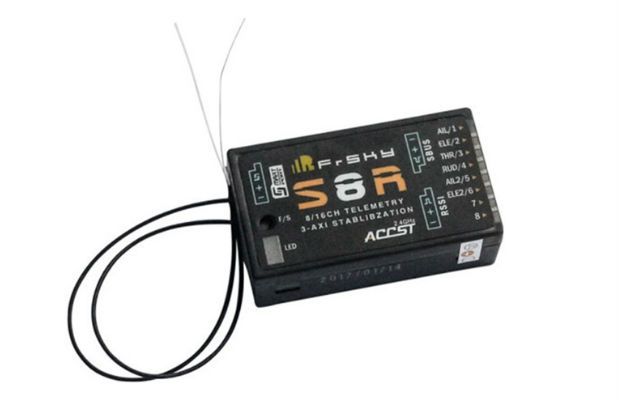

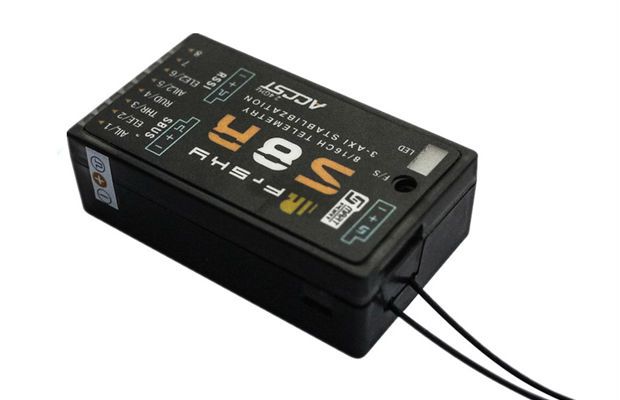

FrSky S8R 8/16 CH Receiver with built-in 3-axis gyro and 3-axis acceleration

Built-in RSSI PWM output(0-3.3V)

  • Built-in battery voltage detection
  • Built-in 3-axis gyroscope and 3-axis accelerometer sensor module
  • Smart Port enabled
  • SBUS Port enabled

share


$105.20
AUD $105.20

  • Compatibility  - FrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16 mode
    S8R-EU only works with FrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16-EU mode

    Firmware -  Upgradable Firmware Upgradeable

    Dimension  - 46.47×26.78×14.12 mm (L×W×H)

    Weight  - 14g

    Operating Range  - Full range

    Operating Voltage Range -  4.0-10V

    Operating Current  - 120mA@5V

    Number of Channels  - 8/16CH (1-8ch from conventional channel outputs, 1-16ch from SBUS output)

    RSSI - （Y/N） With RSSI PWM output on board: PWM voltage output(0-3.3V), 100Hz, 1500±500us

    Measurement Range  - Gyroscope Measurement Range: ±2000dps

    Accelerometer Measurement Range: ±4g

    • 1 x FrSky S8R receiver
