BER-TRC1 2.4G FHSS 3-Ch Radio Control System for Car/ Boat W/ Temperature & RPM Sensor

share


$113.00
AUD $113.00

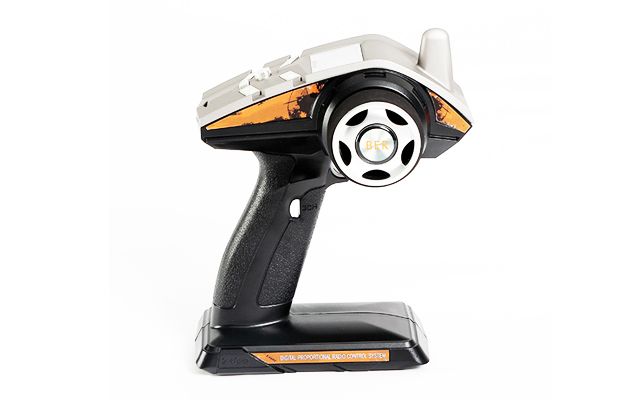

  • Transmitter specifications:

    • Item: BER-TRC1
    • Channels: 3CH
    • Model type: Car/Boat
    • RF range: 2.40 - 2.48GHz
    • Bands: NO. 208
    • RF power: less than 20 dBm
    • 2.4G system: FHSS
    • Code type: 2-FSK
    • Sensitivity: 1024
    • Low voltage warning: (less than 4.4V)
    • ST range: 84 (Around 42°)
    • TH range: 40 (F: 27;B:13)
    • Charger port: Yes
    • Power: 4.4V – 8.6V
    • Weight: 280g
    • Size: 10 0 *140*20 0 mm
    • Color: black
    • Certificate: CE0678, FCC



    RECEIVER SPECIFICATIONS：

    • Item: BER-RXV3
    • Channels: 3
    • Model type: Car/Boat
    • RF range: 2.40-2.48GHz
    • Bands: NO. 208
    • RF power: less than 20 dBm
    • 2.4G system: FHSS
    • Code type: 2-FSK
    • Power: 4.4V - 8. 6V
    • Weight: 8g
    • ANT length: 170mm
    • Size: 13*20*30mm
    • Color: White
    • Rx Sensitivity: -105 dBm
    • Certificate: CE0678, FCC



    Telemetry Concentrator Specs.

    • Item: BER-HCV1
    • Highly integrated
    • Voltage acquisition module
    • Measuring range: 1V – 30V
    • Temperature acquisition module
    • Measuring range: 0℃ - 150℃
    • Speed acquisition module
    • Measuring range: 480RPM– 50000RPM



    Sensors

    • 1. Temperature sensors, two types for EP power or GP power.
    • 2. Speed sensor
    • 1 x 2.4G pistol transmitter
    • 1 x 3-channel 2.4G receiver BER-RXV3
    • 1 x Telemetry concentrator
    • 1 x temperature sensor
    • 1 x RPM sensor
    • 2 x Battery balance connector to servo connector conversion cables



    (*No RX battery, no TX battery, no servos, simulating software and simulator cable are not included in this radio kit.)

  • Domestic Shipping starts at $0.00 for this item plus $4.00 for each additional item . International Shipping starts at $9.00 for this item plus $4.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
