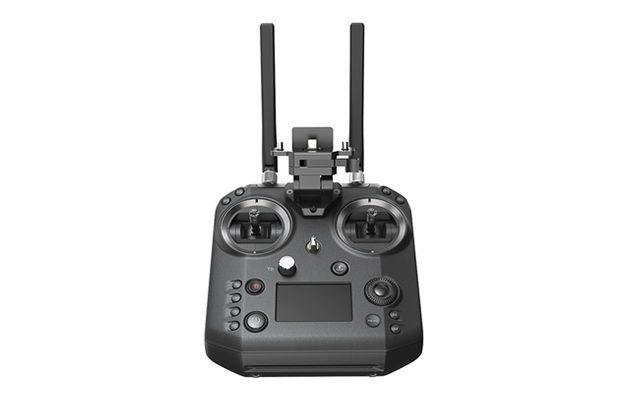

DJI Cendence Remote Controller
The Cendence remote controller is a professional-grade, customizable remote controller designed for full integration with other advanced DJI products like the Inspire 2 and CrystalSky monitor.
Cendence offers modular components and controls that realize the full potential of Inspire 2 applications. It provides up to five analog control channels with over ten customizable buttons, improving overall control efficiency. Its design offers antenna interchangeability where a high-gain antenna can augment the power of DJI Lightbridge technology, significantly increasing overall anti-interference and image quality. Cendence comes with the fully integrated Cendence Monitor Mounting Bracket and HDMI, SDI, USB, and CAN ports provide robust expansion capabilities.
Dials, Levers, and Knobs
The two knobs on the front panel control gimbal pitch and yaw, and the right/left levers and Focus Adjustment Knob are used to tune flight controller settings and the gimbal camera in real-time, allowing you to pull focus and set aperture.
For quick camera adjustments, you can customize several shortcut buttons for particular groups of settings, or save frequently used settings.
Customizable buttons can quickly enable or disable frequently used functions like focus peaking, color waveform, obstacle avoidance, and home point resetting, or close warnings and tips midflight, all without using an app.
Rotate the dials or the toggle the right/left levers while holding certain buttons to control gimbal roll, shutter speed, aperture, or ISO.
Detachable Design, CrystalSky Compatibility

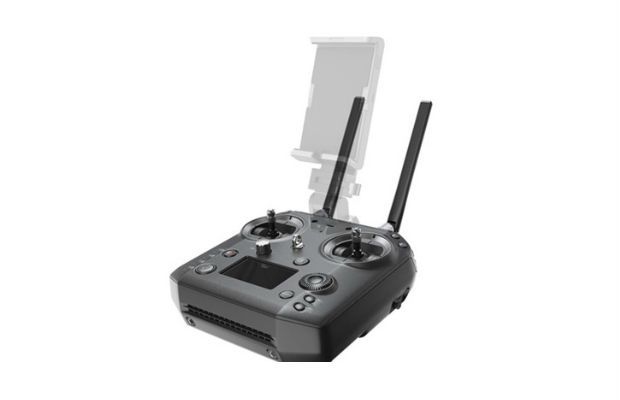

The CrystalSky monitor mounts to the Cendence remote controller via the Cendence Monitor Mounting Bracket.

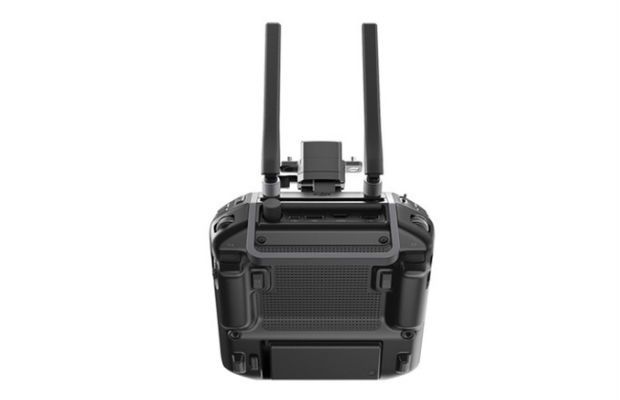

The Cendence remote controller's antennas, PCB, mounting bracket, and battery are all detachable, making its hardware easily upgradable, allowing you to customize the controller for compatibility with future DJI aircraft.
Dual Operator Control
When precision camera control is required, the Cendence remote controller can connect as either a master or slave controller with the Inspire 2's remote controller or another Cendence remote controller.

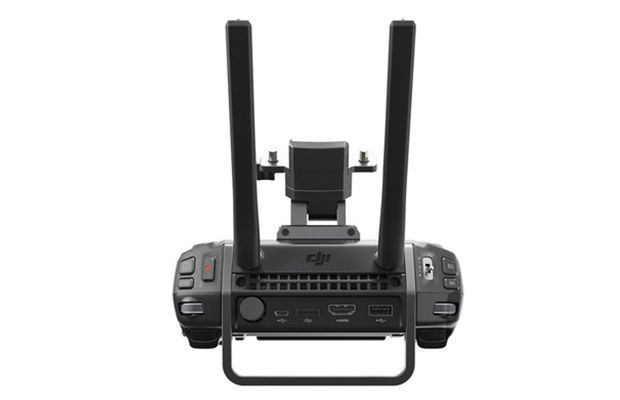

SDI and HDMI ports support broadcasting at 1080i50 and 720p60.
Connect DJI Focus, or other compatible accessories via the CAN port.
The USBA port supports connectivity with other mobile devices.
Cendence uses a detachable battery that operates for up to four hours. If you run out of power, just swap in a charged battery or charge Cendence via the power port. Cendence uses the same batteries as CrystalSky monitors, enhancing product synergy.
Practical accessories make using Cendence easy.
The Cendence Support Rig takes on part of the controller's weight, making it easier to hold for long periods of time.
Control Stick Covers prevent dust from entering both sticks, ensuring smooth and reliable control.
The Interchangeable Mobile Device Holder lets you attach a phone or tablet instead of a CrystalSky monitor.
