RacingStar RS16 is a high-performance, micro processor control

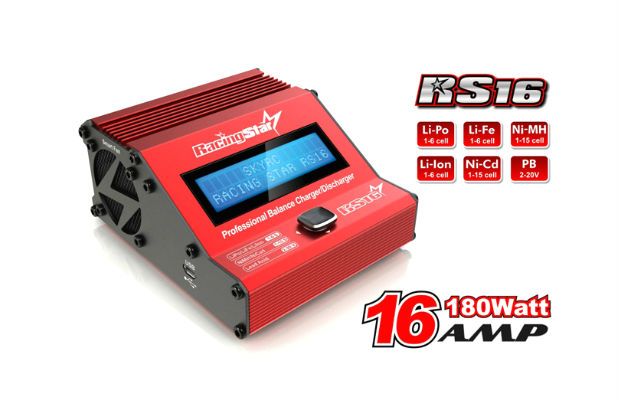

charge/discharge station with battery management suitable for all current battery types. There is an integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; the maximum charge current/power can reach 16A/180W.

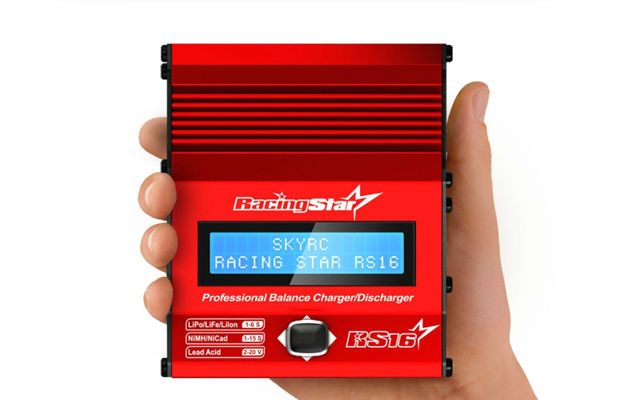

RacingStar RS16 represents the newest technology of chargers with its handheld super-compact portable charging system. The joystick gives the user best operational experience and also makes the charger smart and unique.

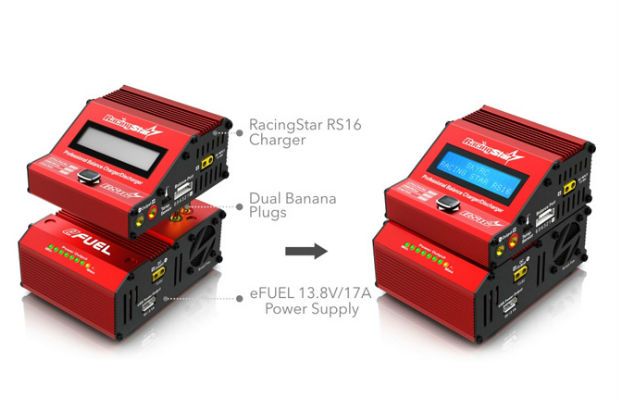

There are two DC inputs, one is banana plug type and the other is XT60 type. The banana plug type in the bottom is designed for Direct Plug Docking System.

Special Features

  • Automatic Charging Current Limit
  • •Capacity Limit
  • •Temperature Threshold
  • •Processing Time Limit
  • The user can check battery's total voltage, the highest
    voltage,the lowest voltage and each cell's voltage by
    this charger.
  • The charger allows user to set the charge/ discharge
    end voltage.
  • The charger can store up to 10 different charge/
    discharge profiles for your convenience. Users can call
    out these data at any time without any special program setting.
  • The user can monitor pack voltage, cell voltage and
    other data during the charging, view charge date in realtime graphs, and can also control charging and
    update firmware from "Charge Master".

share


$94.20
AUD $94.20
    • DC Input Voltage: 11-18V
    • Controls: Joystick
    • Display Type: 2x16 LCD
    • Display Backlight: Blue
    • Case Material: Metal
    • Cooling System: Built-in fan x1pc
    • Case Size: 92x111.4x50mm
    • Weight: 405g
    • PC Communications: USB Port for PC Control & Firmware Upgrade

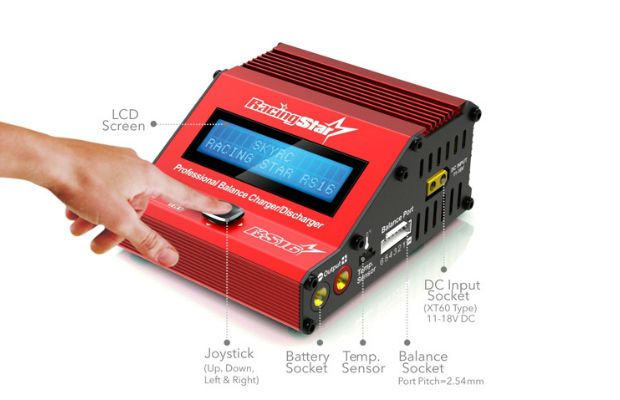

    • External Port: Balance Socket-XH, Temperature Probe Socket, Battery Socket, DC Input, Micro USB Port for PC.
    • Delta Peak Detection: NiMH/NiCad: 3-15mV/cell
    • Charge Cutoff Temperature: 20-80ºC(adjustable)
    • Charge Voltage: NiMH/NiCad: Delta peak detection
    • LiPo: 4.18-4.3V/cell
    • LiIon: 4.08-4.2V/cell
    • LiFe: 3.58-3.7V/cell
    • Balance Current: 200mA/cell
    • Reading Voltage Range: 0.1-25.8V/cell
    • Battery Types/Cells: LiPo/LiIon/LiFe: 1-6cells
    • NiMH/NiCad: 1-15cells
    • Pb: 2-20V
    • Battery Capacity Range: NiMH/NiCad: 100-50000mAh
    • LiPo/LiIon/LiFe: 100-50000mAh
    • Pb: 100-50000mAh
    • Charge Current: 0.1A-1A (±0.3A) 1A-16A (±10%)
    • Safety Timer: 1-720minutes off
    • Charge Wattage: 180W
    • Discharge Current: 0.1A-8A (±10%)
    • Discharge Cut-off Voltage: NiMH/NiCad: 0.1-1.1V/cell
    • LiPo: 3.0-3.3V/cell
    • LiIon: 2.9—3.2V/cell
    • LiFe: 2.6-2.9V/cell
    • Pb: 1.8V
    • Discharge Wattage: 30W
    • Balance Cells: 6 cells
    • Memory: 10 different charge/discharge profiles
    • Charge Method: CC/CV for lithium types and lead (Pb) batteries, Delta-peak Sensitivity for NiMH/NiCad.
    • 1. SKYRC RacingStar RS16 Charger
    • 2. 18AWG Wire Charging Cable
    • 3. DC Input Power Cable
    • 4. 2S LiPo Hardcase Charging Lead Including Balancing Adapter
    • 5. Multiple Balancing Board
