SKYRC BD200 Discharger & Analyzer

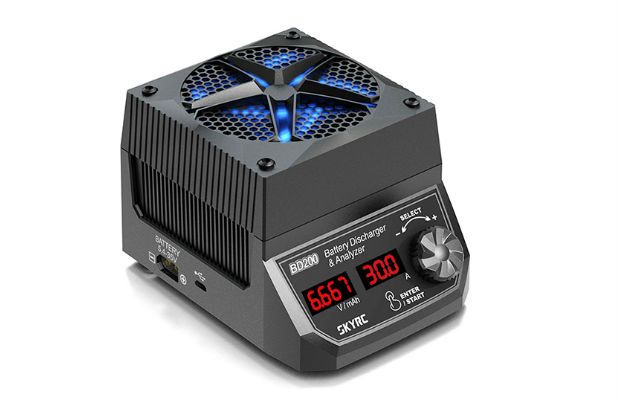

The BD200 is a powerful discharging device that allows the user to discharge a battery at up to 30 amps or 200 watts and also measures and compares the performance of batteries. BD200 allows for the precise measurement of battery capacity and takes the guesswork out of choosing the best battery for your application.
The BD200 is much more than a simple battery discharger or a battery load tester. It will test virtually any type or size of battery, any chemistry or number of cells, up to 35 volts.
It is small with a high performance cooling system and uses MOS fets from the well-known brand IXYS, to make sure it can discharge at 200 watts continuously.

Big Breakthrough Fan System
A single, larger fan that push air downward through an extruded aluminum heat sink. As air passes vertically through the heat sink, it absorbs heat and carries it out. This make BD200 discharge rate at 200 watts continuous possible.

Simple and Intuitive Operation
Rotary Dial, simplify your operation
Digital LED Display,
provide clearer information

It can test virtually any type, size and chemistry battery
BD200 is a voltage oriented discharger, virtually any type of battery can be operated. Accepted voltage ranges from 5.40V to 35.00V

share


$192.00
AUD $192.00
    • Accepted Voltage Range - 5.40-35.00V
    • Low Voltage Alert
    • High Voltage Alert >35V
    • Max. Discharge Power - 200W
    • Discharge Current Range - 0.01A-30.00A
    • Current Consumption in Sleep Mode
    • Standby Current  ≤35mA
    • Current Display Accuracy - 0.01-10.00A ±60mA
    •                                              10.00-30.00A ±2%
    • Voltage Display Accuracy - 5.4-10V ±60mV
    •                                              10-20V ±120mV
    •                                               20-35V ±160mV
    • Capacity Display Accuracy  ±3%
    • Weight  - 858g
    • Dimension - 36.6x104.8x96mm

  • BD200 Manual.pdf
