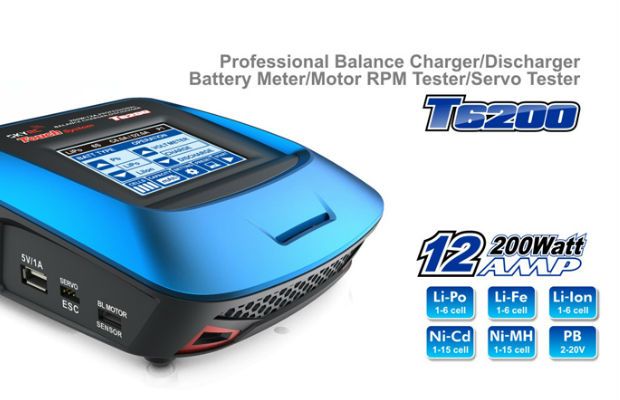

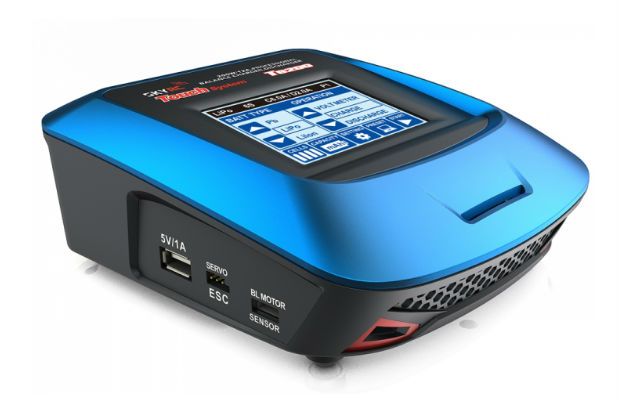

SKYRC T6200 Multi-function Charger

SKYRC T6200 Professional Balance Charger, Discharger, Battery Meter, Motor RPM Tester and Servo Tester

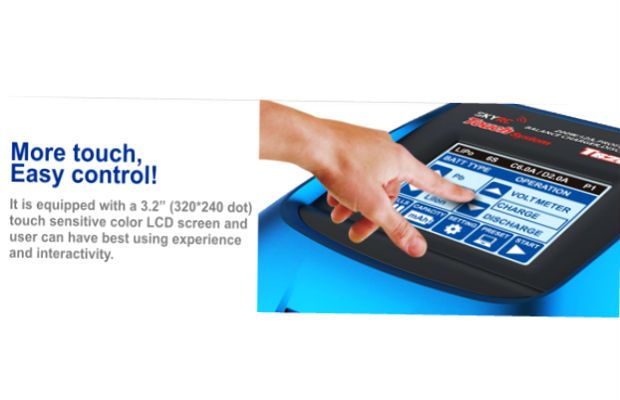

Touch System

Equipped with a 3.2" touch sensitive color LCD screen, it is intuitive as all the operating and
changing status can be displayed in this screen. What's more, the touch screen can register the users' input precisely so that the users can have a wonderful and comfortable "touch"experience.

Optimized Operating Software

SKYRC T6200 Charger features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for lithium batteries,it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!

Charging Status Monitor

When the charger is working, the users could check the information of charging capacity, cell
voltage, charging time, external and internal temperature easily. What's more, it can also display the
voltage in a graphic which helps the user monitor the charging status all the time.
Internal Independent Lithium Battery Balancer
SKYRC T6200 Charger employs an individual-cell-voltage balancer.It isn't necessary to connect an external balancer for balance charging.

Balancing Individual Cells Battery Discharging

During the process of discharging, SKYRC T6200 Charger can monitor and balance each cell of the
battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to Various Type of Lithium Battery

SKYRC T6200 Charger is adaptable to various types of lithium batteries, such as LiPo, LiIon and the new LiFe series of batteries.

Fast and Storage Mode of Lithium Battery

Purposes to charge lithium battery varies, 'fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.

Cyclic Charging/Discharging

1 to 5 cyclic and continuous process of charge>discharge or discharge > charge is operable for battery refreshing and balancing to stimulate the battery's activity.

Memory Preset

The charger can store up to 5 different charge/discharge profiles for your convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.

Terminal Voltage Control (TVC)

The charger allows user to set the charge/discharge end voltage.

Battery Volt Meter

The user can check Lithium battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage; and can check Nickel and Pb battery's total voltage

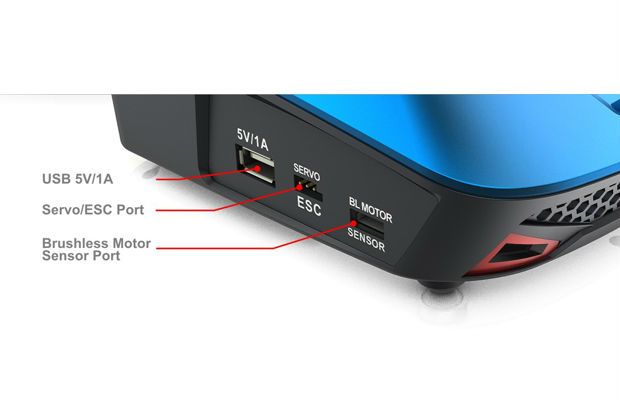

Motor RPM Tester

Users connect the sensor motor and charger with sensor wire, set the pulse width and test the RPM of the motor.

Servo Tester

Connect the servo and the charger with wire, change the pulse width value and check whether the servo works or not

Re-Peak Mode of NiMH/NiCd Battery

In re-peak charge mode, the charger can peak charge the battery once, twice or three times in a row automatically. This is good for making certain the battery is fully charged, and for checking how well the battery receives fast charges.

Delta-peak Sensitivity for NiMH/NiCd

Delta-peak sensitivity for NiMH/NiCd battery: The automatic charge termination program based on the principle of the delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.
Automatic Charging Current Limit

You can set up the upper limit of the charging current when charging your NiMH or NiCd battery, it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.

Capacity Limit

The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

Temperature Threshold*

The battery's internal chemical reaction will cause the temperature of the battery to rise. If the
temperature limit is reached, the process will be terminated.

Processing Time Limit

You can also limit the maximum process time to avoid any possible defect
Motor RPM Tester,Users connect the sensor motor and charger with sensor wire, set the pulse width and test the RPM of the motor.Servo Tester Connect the servo and the charger with wire, change the pulse width value and check whether the servo works or not.

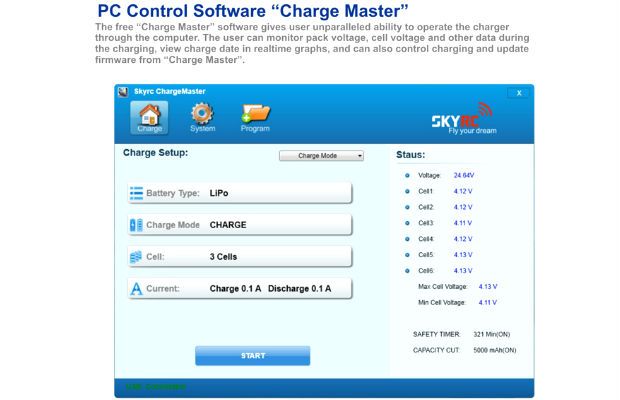

PC Control Software "Charge Master"

There is a mini USB port in the charger which can be used to connect it to the PC. You need optional USB cable (USB A Male to Mini B Male) which is not included in the package. The free "Charge Master" software gives you unparalleled ability to operate the charger through your computer. You can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs. And you can initiate, control charging and update firmware from "Charge Master".When your charger is connected to computer, the "Charger Master" takes over the control of charger. You can control and operate the charger via the "Charger Master" only.

Multi-Language and Four Color Theme Optional
There are two languages and four kinds of color theme stored in the charger and users could select the display language and color theme as basing on personal preference.

Inner resistance of battery pack

Measure Inner resistance of battery pack inclusively all connectors and leads.
