Super Light FPV 480 Line CMOS Camera -MC900D-V9 PAL



  • Small Size: easy to install into narrow room and slim tube, etc.;
  • Light Weight: easy install without causing unnecessary damage on object surface;
  • High resolution, high sensitivity, high SNR;
  • Day & night dual mode auto switch;
  • Low Illumination, high quality video record function;
  • Low Current and power consumption;
  • CMOS sensor generation IV+DSP chip offer true color & HD video.

share


$65.00
AUD $65.00

  • Camera:

    • Resolution: 900 line HD camera
    • Power input: 6-30V wide range input



    Transmitter module:

    • Power: 200mW
    • Band: 5.8G
    • Channel number: 32Ch
    • Video format supported: P / N /S automatic
    • Antenna connector: SMA, jack (Module side)



    Gimble:

    • Axis number: 2
    • Servo voltage: 4.8-6V



    PICK UP ELEMENT: Single chip 1/3 CMOS
    SYSTEM: PAL
    NUMBER OF PIXEL: 786（H）×576（V）
    SENSOR DIMENSION: 4.75mm（H）×3.55mm（V）
    HORIZONTAL RESOLUTION: Approximately 480TV Lines
    SENSITIVITY: 0.008Lux/F1.2
    LENS & VIEW ANGLE: 0.5mm F1.2 / 90°
    S/N RATIO: 48dB
    AUTO GAIN CONTROL: OUT
    WHITE BALANCE CONTROL: OUT
    BACK LIGHT COMPENSATION: OUT
    VIDEO OUT: 1.0V p-p/75ohm
    AUDIO OUT: 1.0V p-p/1Kohm
    WEIGHT : 4g
    WORK CURRENT: DC12V: 35mA
    POWER REQUIREMENT: DC12V:（4-24V ）
    OPERATING TEMPERATURE: - 10° C ~ +50°C ，less than 90% RH
    Connection: PIN1 -> Red DC5V /12V; PIN2 -> Black GND; PIN3 -> Yellow VIDEO OUT; PIN4 -> White AUDIO OUT

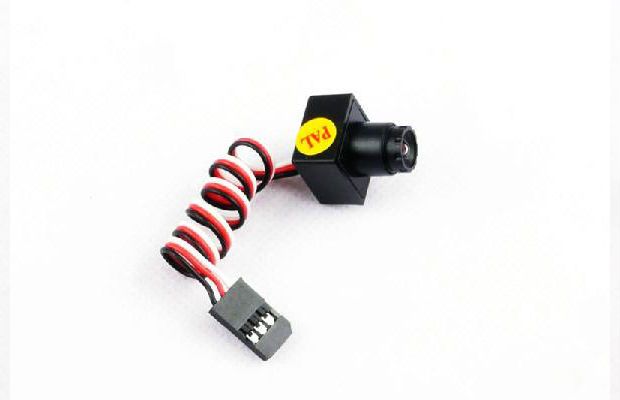

    • 1 x camera with Futaba connector
  • Domestic Shipping starts at $7.20 for this item plus $4.00 for each additional item . International Shipping starts at $10.00 for this item plus $5.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
