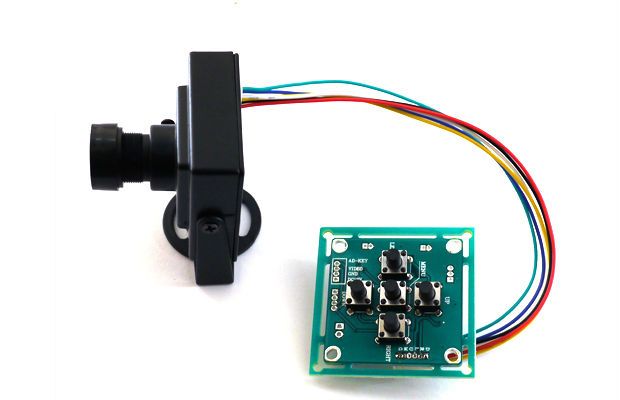

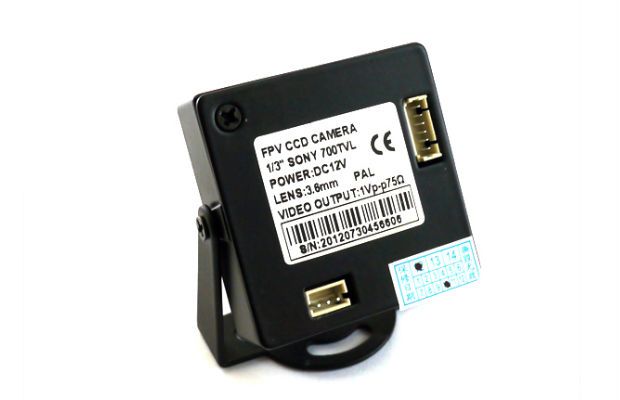

FPV 700-line Figurine Camera Sony 1/3 CCD PAL

FPV 700-line Camera 1/3 Sony CCD - PAL

• Imaging Device: 1/3" Sony 960H Exview HAD CCD II - PAL
• Horizontal Resolution：700TVL
• Effective Pixels: PAL: 976H×582V
• Scanner System: PAL
• Minimum Illumination: 0.01LUX/F1.2
• D/N Selection： Color/B/W/Auto

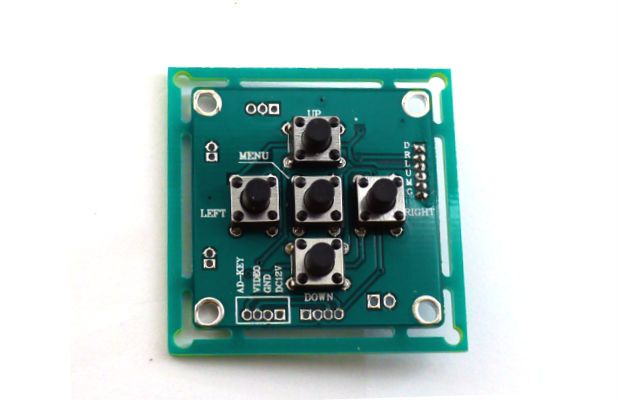

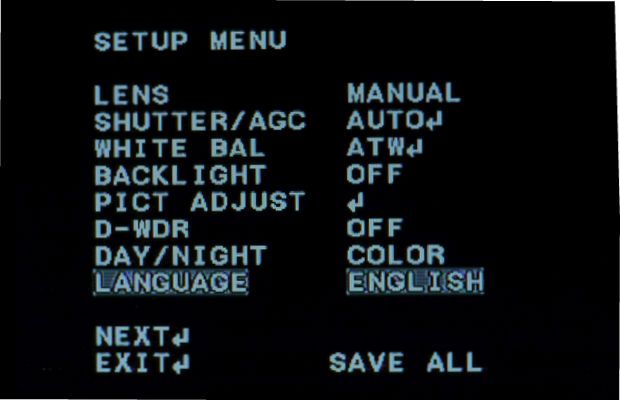

• O.S.D Menu： Available
• Language: Chinese/English
• Noise Reduction： 2D-NR 0-15 level
• Gain Control: Auto/MANUAL
• White Balance: Auto/MANUAL
• Backlight Compensation: BLC/HLC/OFF selectable
• S/N Ratio: ≥48dB
• Electronic Shutter: PAL:1/50-1/100.000s;
• Sync. System: Internal
• Video Output: 1.0Vp-p/75Ω
• Lens: 3.6mm
• Power: DC12V±5%
• working current: 70mA
• Operation Tem: -20℃--60℃

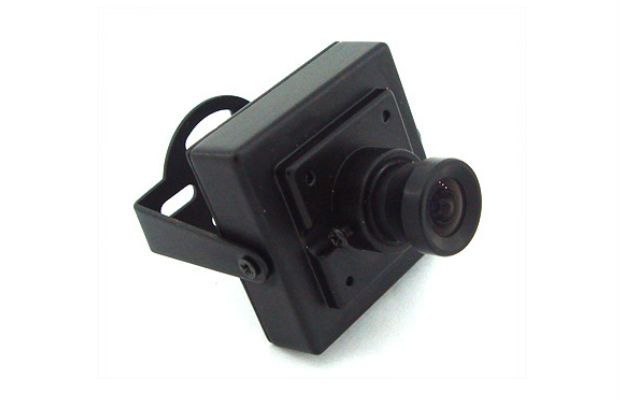

• Camera dimension: 36(W)x 36(H) x 33.5(length)mm (excluding the camera mount)

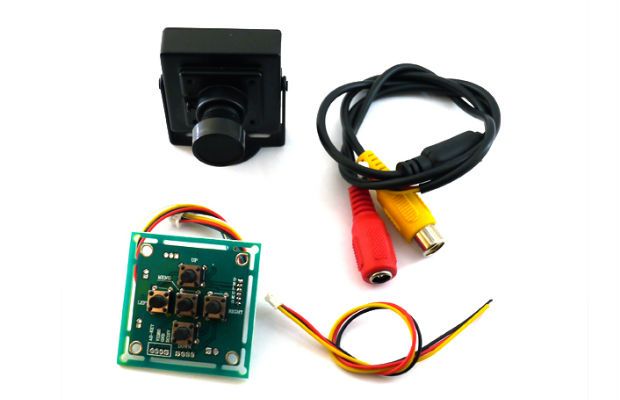

Wiring guide:

• Red- positive ("+"),
• black - Negative ("-"),
• Yellow - signal
