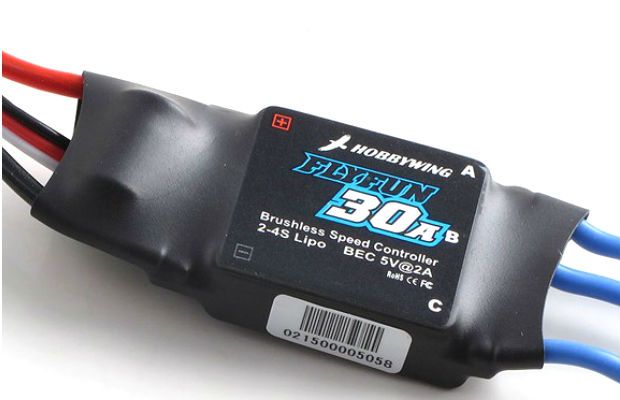

HobbyWing FlyFun 30A electronic speed controller with integrated 2A/5V BEC. For lithium polymer battery packs with 2-4 cells.

The FlyFun 30A HobbyWing ESC is a compact and light-weight ESC which can be programmed using the optional HobbyWing LED Programming Card (available separately) or from your transmitter using the appropriate sequence of stick movements.

  • Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
  • Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
  • User programmable.
  • Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
  • Compatible with Lipo battery and NiCd/NiMH battery.
  • Internal timing can be changed to be suitable for different brushless motors.
  • Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
  • Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

Application:

  • 1. 400/450 class heli sports
  • 2. Small scale fixed-wing airplane, 1m aerobatic

share


$26.00
AUD $26.00
    •  Output: Continuous 30A, Burst 40A up to 10 seconds.
    •  Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NiMh battery.
    •  BEC: 2A / 5V Linear mode BEC.
    •  Refresh rate of the throttle signal: 50Hz to 432Hz.
    •  Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
    •  (BLM = BrushLess Motor)
    •  Size: 55mm*25mm*9mm.
    •  Weight: 25.8g.
    • 1 x ESC
