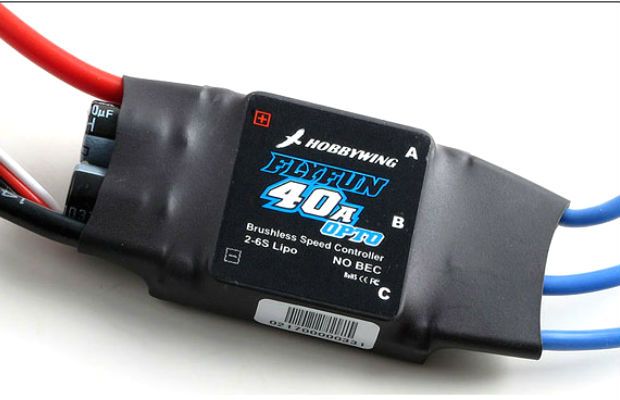

Hobbywing FlyFun Series 40A 2-6S Speed Control for Airplane/Helicopter FlyFun-40A-OPTO

  • Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
  • Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.

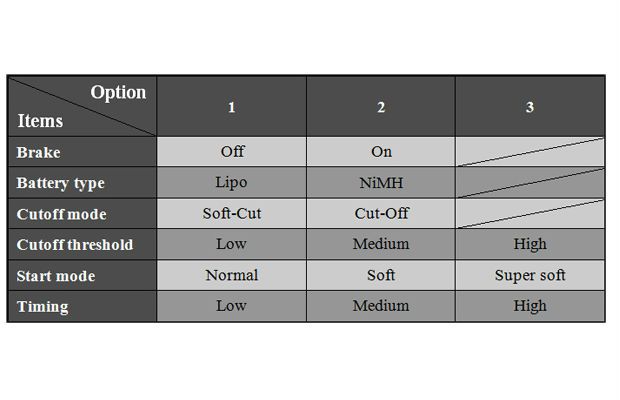

  • User programmable.
  • Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
  • Compatible with Lipo battery and NiCd/NiMH battery.
  • Internal timing can be changed to be suitable for different brushless motors.
  • Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
  • Extreme low resistance PCB is used at the power output section, the whole ESC has super current endurance capability.
  • Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

share


$48.00
AUD $48.00

  • 1.1 Output: Continuous 40A, Burst 55A up to 10 seconds.
    1.2 Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd/NiMh battery.
    1.3 BEC:
    FlyFun-40A: 3A / 5V switching mode BEC.
    FlyFun-40A-OPTO: None.
    1.4 Refresh rate of the throttle signal: 50Hz to 432Hz.
    1.5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
    (BLM = BrushLess Motor)
    1.6 Size:
    FlyFun-40A: 60mm*28mm*15mm.
    FlyFun-40A-OPTO: 60mm*28mm*12mm..
    1.7 Weight:
    FlyFun-40A: 38.8g.
    FlyFun-40A-OPTO: 35.2g.

    • 1 x ESC
  • Domestic Shipping starts at $13.00 for this item plus $5.00 for each additional item . International Shipping starts at $19.00 for this item plus $8.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
