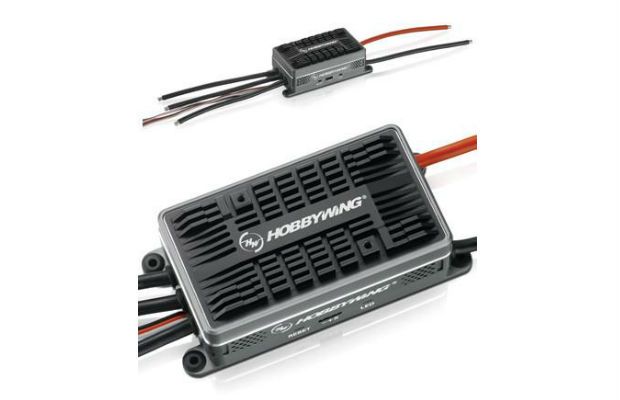

Hobbywing Platinum 200A HV Speed Controller

Hobbywing Platinum 200A HV Speed Controller - Platinum HV-200A-OPTO

• High performance microprocessor with a running frequency of up to 120MHz for excellent motor
• speed-governing and super soft startup.
• Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly
• reduces the risk of losing control.
• The maximum motor speed can reach 210000 RPM (for 2 pole motor), 70000 RPM (for 6 pole motor) and
• 35000 RPM (for 12 pole motor).
• Multiple flight modes: Fixed-wing, Heli (Linear Throttle Response), Heli (Elf Governor), and Heli (Store Governor).
• Data logging records the standardized RPM, minimum voltage, maximum current and maximum temperature
• of the flight.
• "Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid
• crashes caused by incorrect operations.
• WIFI module (sold separately) for programming the ESC wirelessly with your smart phone (ios or Android).
• Internal anti-spark circuitry effectively eliminates electric sparks produced when the ESC is powered on.
• Independent output port for RPM (that is: motor speed) signals.
• Separate programming port for ESC programming or parameter setting.
• Multiple protections like thermal shutdown protection, overload protection, over-current protection, etc.
• Online firmware upgrade via HOBBYWING multifunction LCD program box or WiFi module.
