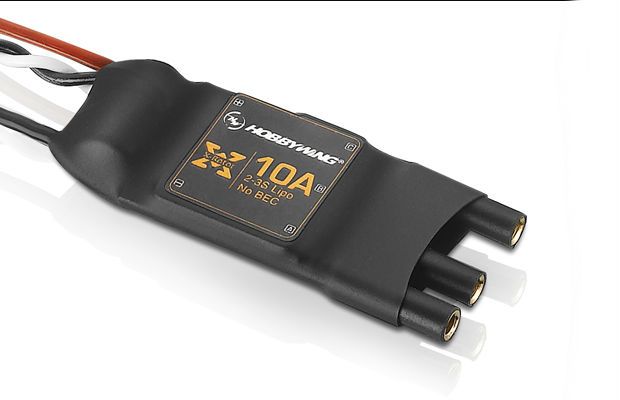

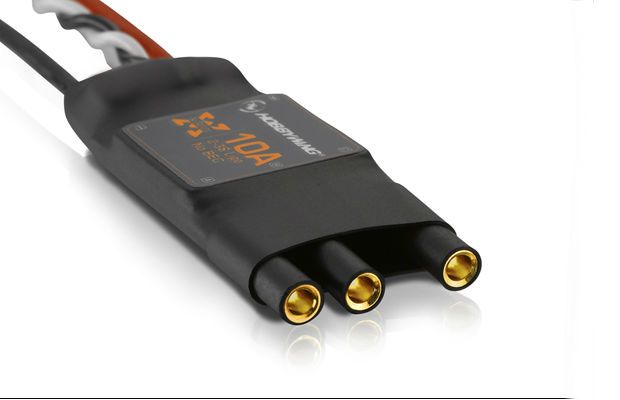

HOBBYWING XRotor 10A ESC for Multicopters

7 MOSFET with extra-low resistance brings high performance and great current endurance.

  • Special core program for multi-rotor controllers greatly improves throttle response.
  • Specially optimized software for excellent compatibility with disc-type motors.
  • All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
  • The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
  • Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
  • Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.

share


$49.00
AUD $49.00
    • Con. Current - 10A
    • Peak Current（10s）- 15A
    • BEC - No
    • LiPo - 2-3S
    • Programmable Item - Timing（High/Intermediate)
    • Weight - 6.5g
    • Size - 36.5 x 16.4 x 4.1
    • Typical Applications* (For reference）- 250 Class Quadcopter



    Note: The "Typical Application" in the above form only refers to quadcopter (with 4 motors). When the ESCs are installed on multi-Rotors with 6/8/16 motors, the applicable axle distance can be larger than the value listed in the above form.

    • 1 x XRotor ESC
