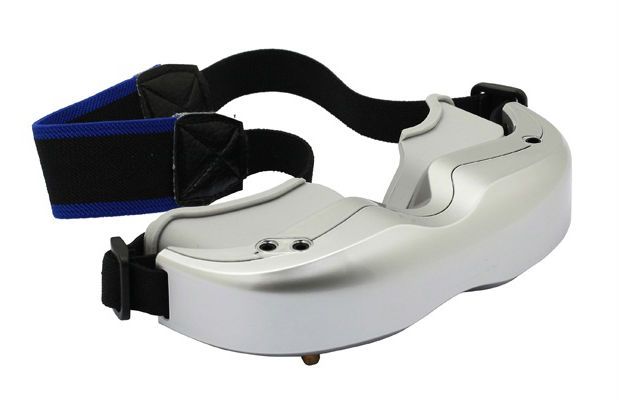

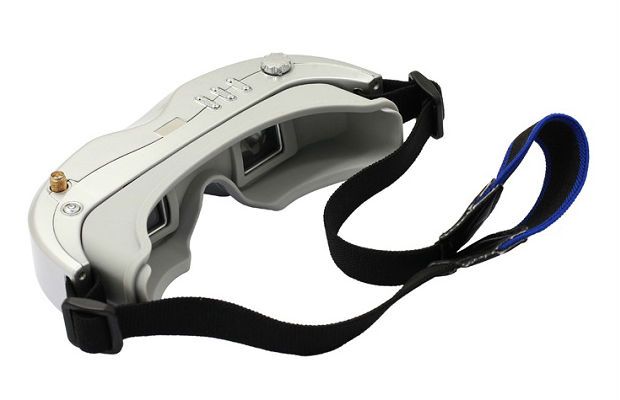

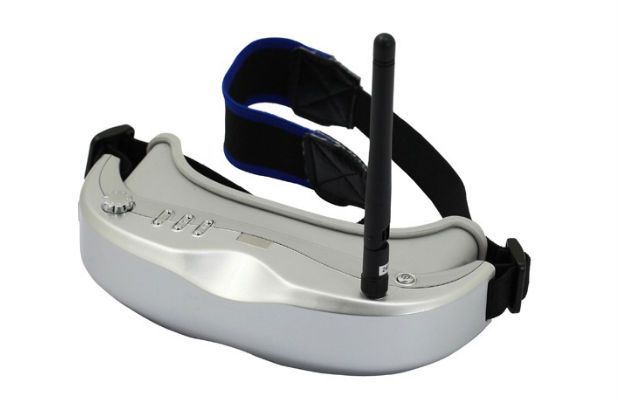

BOSCAM GS920 Wireless All-in-One FPV Goggles

This BOSCAM Goggles simply Add a totally new dimention to FPV Flying These video goggles, aka FPV video glasses or H.M.D.(Head Mount Display) give you a high resolution VGA display, 640 x 480 pixels. By its features especially the built-in head tracker allows you to control onboard FPV camera. It just makes FPV piloting even more realistic! These goggles are 5.8Ghz ready, they wont interfere with your current 2.4Ghz RC system!

Video goggles come with true full color micro LCD panels and a silicon rubber shield for blocking sunlight, giving you a rich 80 inch display perfect for high-end FPV flight.

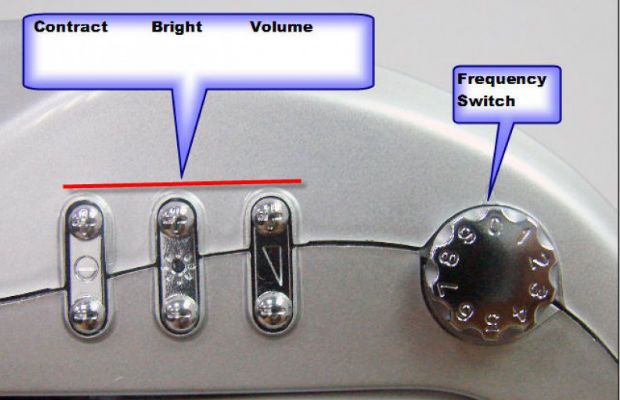

A compact and light-weight design, Adjustable volume, Brightness and Contrast plus they can be powered by the Tx and include full anti-drift head-tracking via your transmitter!
Powered by your TX or an 8~13V input these goggles are equipped with the dual Audio/Video receiver modules, just use the appropriate antenna provided with the kit and set the frequency from 2.4 to 5.8Ghz in the OSD (On Screen Display) menu and you will be ready to receive the video from your FPV transmitter

Features of Boscam GS920 Video Goggles

  • * Display resolution: VGA 640x480 RGB, 922k pixels
  • * Field of view: 32 degree
  • * Virtual image size: 80 inches
  • * Frequency: 2.4GHz / 5.8GHz (selectable)
  • * Audio & Video: input/output
  • * Input voltage: 8~13V
  • * Built-in Head Tracker for Futaba

share


$488.00
AUD $488.00

  • Compatible transmitters (the transmitter for RC model, not the video transmitter):
    FUTABA FF-7, FF-8, FF-9, T9Z, T12MZ and T14MZ.

    * Other types transmitter may not supported.

    Working Frequencies:

    2.4G

    CH1/CH5: 2410/2370MHz
    CH2/CH6: 2430/2390MHz
    CH3/CH7: 2450/2490MHz
    CH4/CH8: 2470/2510MHz

    5.8G:

    CH1/CH5: 5705/5885MHz
    CH2/CH6: 5685/5905MHz
    CH3/CH7: 5665/5925MHz
    CH4/CH8: 5645/5945MHz

    • 1 x video glasses
    • 1x eye patches
    • 1 x AV connection cables
    • 1 x 2.4G antenna
    • 1 x 5.8G antenna
    • 1 x data cable
    • 1 x JST to DC cable



    Requires:

    • 1 x 2.4G / 5.8G video transmitter
    • 1 x video camera
    • 1x earphone



  • BOSCAM GS920 Wireless FPV Goggle

  • Domestic Shipping starts at $14.00 for this item plus $5.00 for each additional item . International Shipping starts at $21.00 for this item plus $5.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
