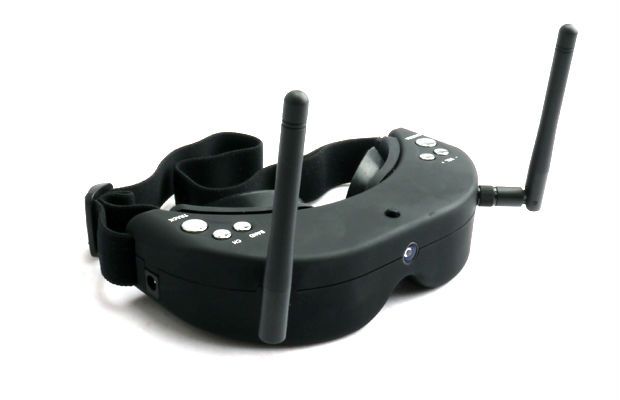

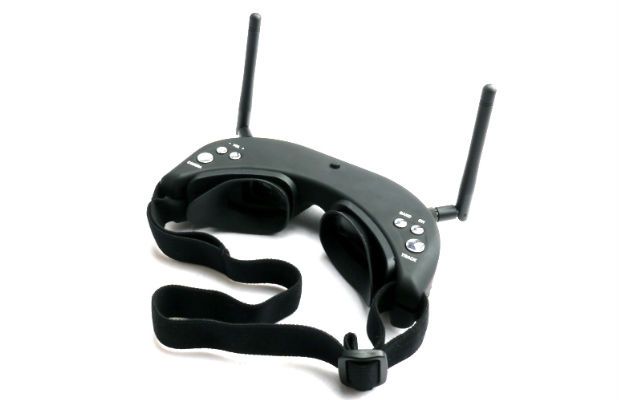

FPV 5.8G 32CH Wireless Head Tracing Goggle

FPV 5.8G 32CH Diversity Receiver Wireless Head Tracing Goggle  SKY01

Higher resolution display 854 x 480;
- Head-track function. (via Futaba radios)
- 5.8G, 32 channels diversity receivers.
- Integrated front camera, you can see the vision in front of you without removing the glasses.

Wireless

The FPV Goggle withBuilt-in 5.8Ghz Diversity Receiver and diversity Antenna inputs for best reception.It working in diversity mode to achieve good signal utilization and improve theimage quality.

It supports 4 Bandsand total 32channels (Bands selection and Resulting Frequencies see details in Specifications）

Head Tracker

Support Head-track function.

Front Camera

· TheFront Camera is Wide-Angle Camera with 680X480(VGA) Resolution and good low Illumination. It's very convenient to view around without taking off the Goggles.

· Press"Camera" button to open the Front Camera.

Volume

· Eachboot is automatically set to the lowest volume to avoid sudden loud boot.

· Along beep indicates that you have reached the MAX or MIN Volume. .

Display Setup

Interpupillary distance（IPD）Adjustable

· Pull the IPD Adjuster to adjust the interpupillary distance

Brightness/ contrast Adjustable

AV input

· The goggles support AV IN. The wireless model will close when the AV IN is connected to save power.

· TheFront Camera is ok for use under AV IN mode.

AV output

· AV Out is the diversity Video and Audio output

· Earphoneport is audio output for connecting earphones.
