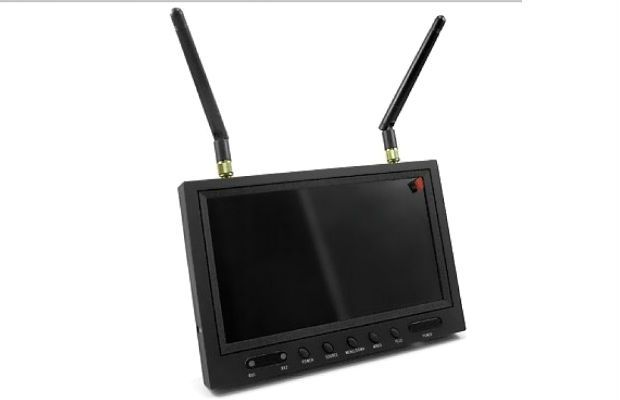

Boscam 5.8GHz Diversity Receiver 7 inch 800x480 LCD Monitor W/Light Shield RC-701 | All bands 32CH Edition

1. Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
2. Dual buffered AV outputs
3. Can receive 2 different channels at the same time
4. Not affect by 2.4GHz R/C Radios
5. AV Receiver with Diversity inputs
6. Small, light weight, durable
7. All bands, 32 channels edition, compatible with all 5.8G FPV devices currently available on market.

*Compatible with the 5.8G transmitters sold on our website.


share


$255.90
AUD $255.90
    • 1. Screen size:7"
    • 2. Screen type: TFT LCD Screen/long life, LED backlight
    • 3. Resolution: 800*480
    • 4. Brightness: 450cd/m2
    • 5. Contrast: 500:1
    • 6. View Angle: 140/120degree (Horizontal/Vertical)

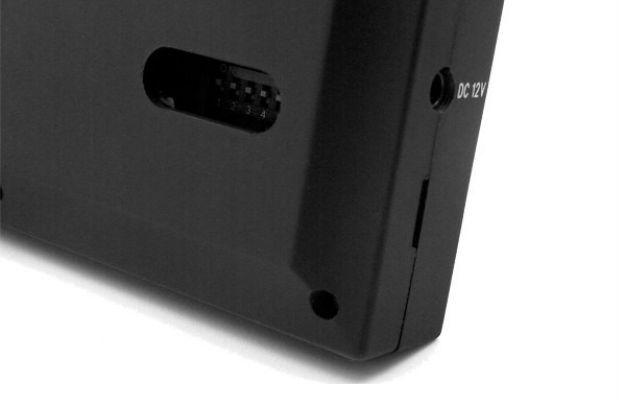

    • 7. Working Voltage: DV 7-12V(center positive) or 11.1V Li-battery
    • 8. Power Consumption: < 8w
    • 9. Size: 180mm x 120mm x 23mm
    • 10. Built-in 5.8Ghz Dual diversity receiver automatically for best reception

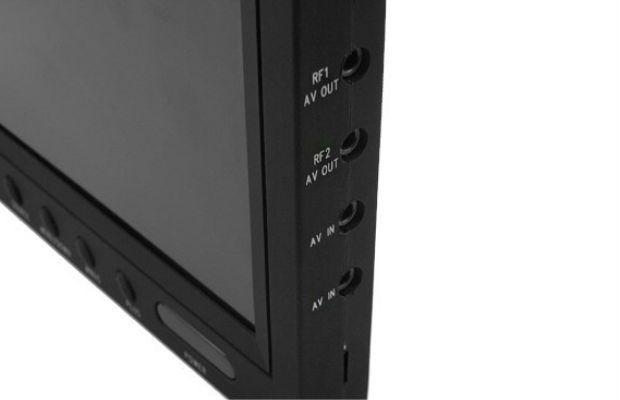

    • 11. Built-in 2CH 5.8Ghz AV output and 1CH AV input
    • 12. Support 9 languages menu selection
    • 13. Working temperature: -10℃~+ 65 ℃



    Working frequencies

    • CH1: 5705Mhz
    • CH2: 5685Mhz
    • CH3: 5665Mhz
    • CH4: 5645Mhz
    • CH5: 5885Mhz
    • CH6: 5905Mhz
    • CH7: 5925Mhz
    • CH8: 5945Mhz
    • 1 x monitor
    • 1 x light shield
    • 2 x 5.8G 2db antennas
    • 1 x wire set

    *This device is upgraded from 8ch to 32ch from 19th Sep., 2013.
