All-in-one 7" Wireless & DVR Monitor 5.8GHz 32CH - Model RC800

Looking for an all-in-one solution for your FPV ground station?
This kit integrated monitor, 32-channel wireless A/V receiving, DVR (video recording) in one unit.

Further more, it has the following special innovative special features:

  • OSD menu displays working frequency, battery level etc on the monitor screen.
  • Switching channels of wireless AV transmitter & receiver synchronously by the model remote control (Special TX must be used for this function, refer to instruction manual for details)
  • ATT antenna tracking supported.

share


$230.00
AUD $230.00
    • Resolution：7″ 800*480 HD Screen; PAL(720×576), NTSC(720×480)
    • Dynamic image：MP4, mono audio channel
    • Storage：RAM(around 128MB)、Mini SD(TF) Card（support 32GB in max, card is NOT included）
    • Wireless receiver：5.8G 32CH；
    • sensitivity：-90dBm

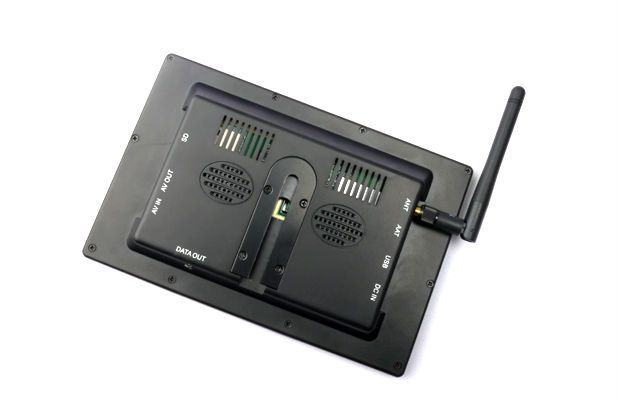

    Input and Output port

    • AV output: mono audio channel; video output
    • AV input: mono audio channel; video input
    • DC IN:7-28V
    • AAT OUT port
    • ANT: RPSMA
    • DATA OUT port
    • USB:USB2.0

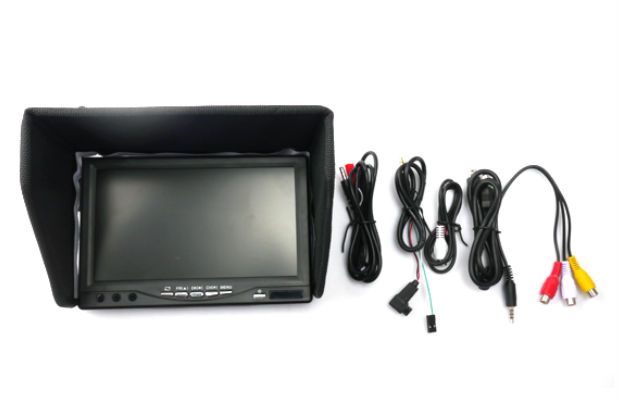

    • 1 x monitor
    • 1 x light shield (Fabric hood)
    • 1 x USB cable
    • 1 x AV cable
    • 1 x DC cable
    • 1 x AAT data cable
    • 1 x channel switching wire

  • RC800 (all-in-one) DVR Monitor Manual

  • Domestic Shipping starts at $26.30 for this item plus $15.00 for each additional item . International Shipping starts at $44.00 for this item plus $35.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
