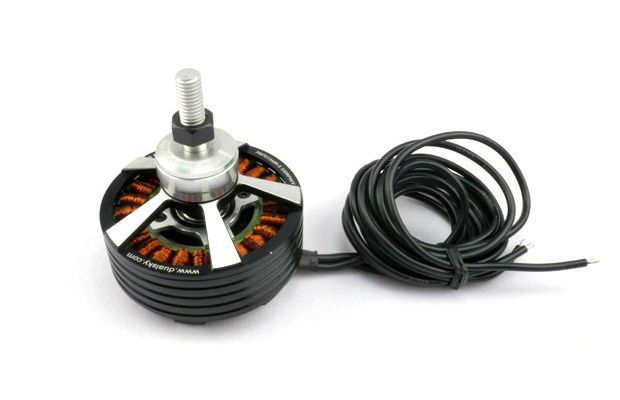

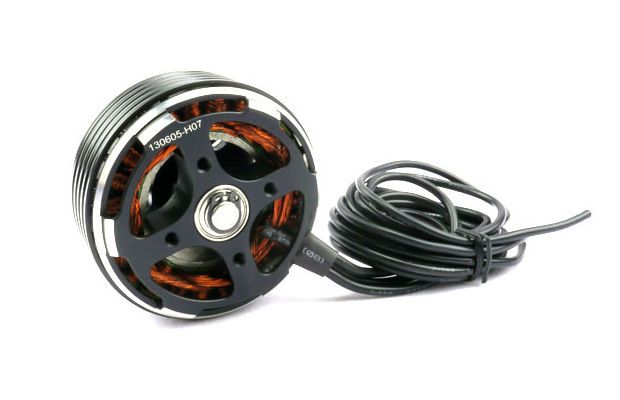

Dualsky XM7015MR-5 330KV Outrunner Brushless Disk Type Motor for Large Scale Multi-rotor

  • 28 poles. High torque. High efficiency.
  • Specifically designed for large scale Multi Rotor.

share


$145.10
AUD $145.10
    • RPM/V (KV): 330
    • Net Weight(g): 368
    • Diameter(mm): 70
    • Length(mm): 40
    • Diameter of Shaft(mm): 4.0, 8.0
    • Mounting holes pitch(mm): 30/30
    • Slots,Poles: 24, 28
    • Idle Current(Io) @10V(A): 1.6
    • Resistance(Ri)(mOhm): 40
    • Cruising power(W)[8 mins]: 789
    • Bursts current(A)[15s]: 65
    • Peak power(W)[15s]: 1434
    • Recommended ESC: 80-100A
    • Setup (No. of Cell, Prop.): 6S, 20x6, 22x7, 24x8

    Flight weight (for reference only):

    • Max. weight of quad-copter(kg): 8.8
    • Max. weight of hex-copter(kg): 13.2
    • Max. weight of oct-copter(kg): 17
    • 1 x motor
    • 1 x prop holding-down plate
    • 1 x prop adaptor
    • 1 x screw bag
