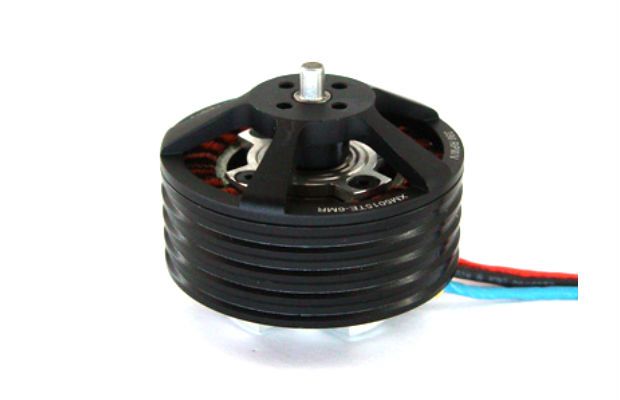

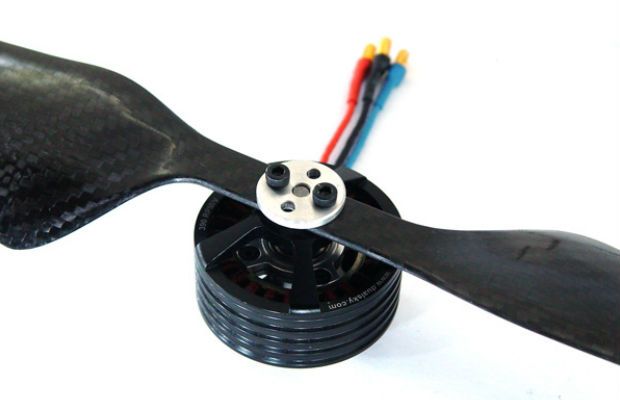

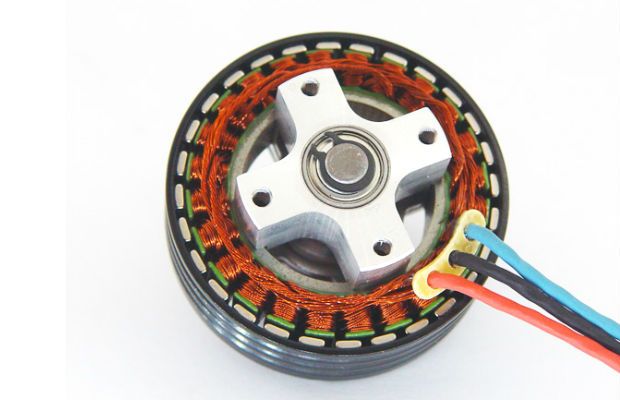

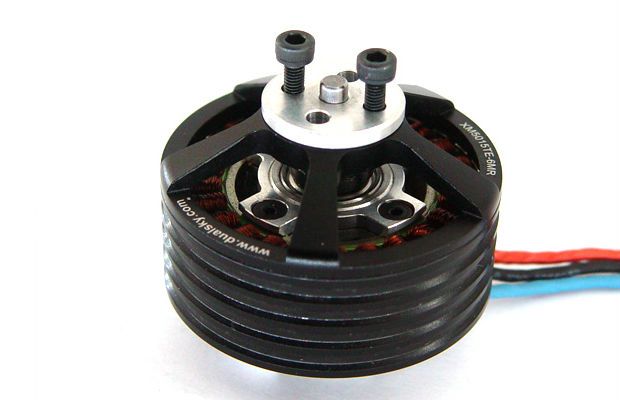

DUALSKY XM5015TE-7MR 340KV Outrunner Brushless Disk Type Motor for Multi-rotor (Short shaft)

28 poles. High torque. High efficiency. Specifically designed for Multi Rotor.

share


$91.00
AUD $91.00
    • Model:XM5015TE-7 MR 340KV
    • KV: 340RPM/V
    • Weight: 153g
    • Diameter: 50mm
    • Length: 43mm
    • Diameter of Shaft: 4mm
    • Mounting holes pitch: 25/25mm
    • Slots,Poles: 24, 28
    • Idle Current(Io) @10V: 0.7A
    • Resistance(Ri): 80mOhm
    • Cruising power[8 mins]: 368W
    • Bursts current[15s]: 30A
    • Peak power[15s]: 669W
    • Recommended ESC: 30-40A
    • Setup 1 (No. of Cell, Prop.): 6S, 16x5 to 17x5
    • Max. weight of 4-rotor copter: 3.7kg
    • Memo: 4KG 4-rotor copters

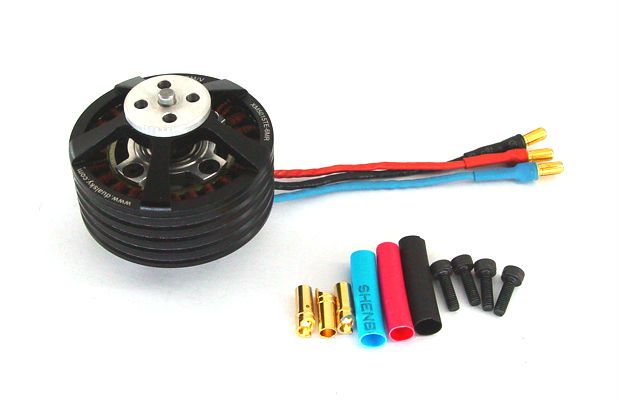

    • 1 x motor
    • 1 x prop adaptor
    • 1 x motor mount
    • 4 x prop adaptor screws
