SUNNYSKY X2204S KV2300 Brushless Motor  - Multi-rotor Version

The prop adaptor of this series is mounted to the motor can with 3 screws, it gives better centralization and balance.

  • Long-life Japanese NMB ball bearings.
  • Efficient Japanese Kawasaki stator steel
  • Rare earth magnets stable up to 180℃
  • Oxygen free pure copper wires
  • CNC machined aluminum case
  • Silicone wire leads
  • Patented balance techniques
  • Unique wiring method

share


$40.00
AUD $40.00
    • KV (rpm/v): 2300
    • Lipo Battery (cell): 2-S Li-poly
    • Weight: 22.8g (including prop adaptor)
    • Length: 34.6mm including prop adaptor, 13.2mm excluding prop adaptor
    • Diameter: 27.5mm
    • Prop adaptor Shaft Diameter(mm):
    X2204S kv2300

    3S 11.1V GWS 5043


    Thrust    Current    RPM/Min
    100g        1.3A        8500
    150g        2.5A       11135
    200g        3.9A       13200
    250g        5.7A       15300
    300g        7.0A       16600
    350g        9.0A       18230
    370g        9.7A       18625

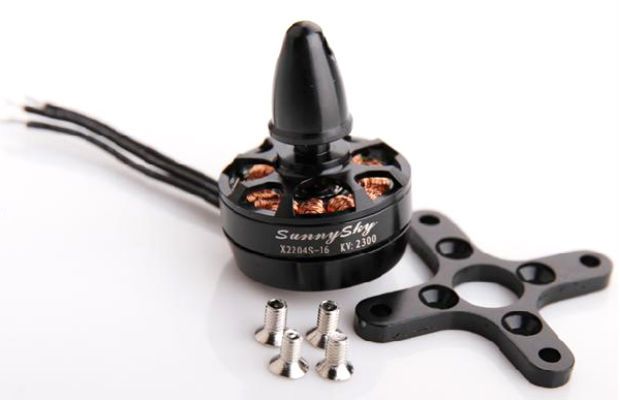

    • 1 x motor
    • 1 x motor mount



    *Connectors are not included
