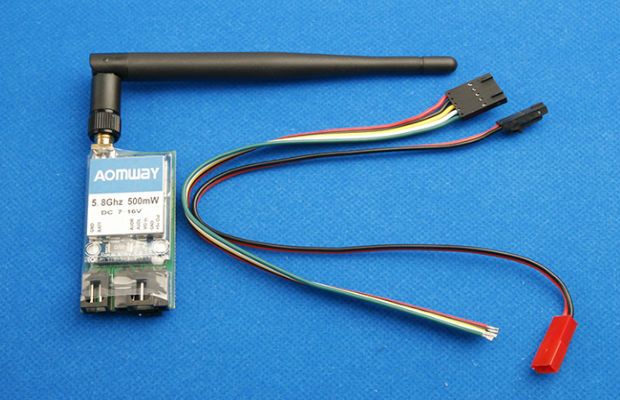

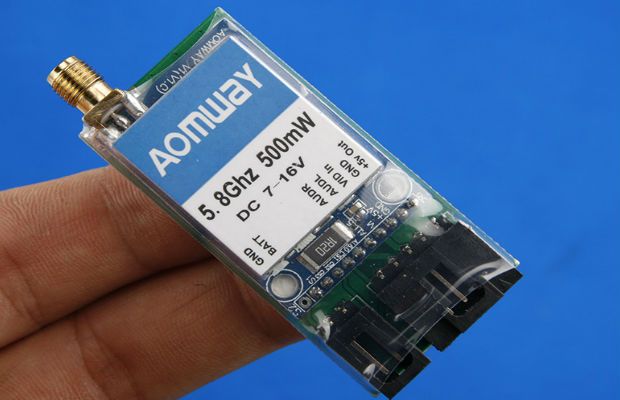

AOMWAY 5.8G 15CH 500mW A/V Transmitter (VTX)

Provide 5V or direct output  (optional by using jumper) ouput for powering camera.

* When it is set to direct output mode, the output volage will be same as the transmitter's main power input voltage, so do make sure your camera input voltage is compatible with your main battery voltage when use the direct output mode.

share


$79.50
AUD $79.50
    • Transmitter channel number: 15-ch
    • Power input: 7-16V DC
    • Transmitting power: 500mW
    • Transmitting current: 220mA @12V
    • Audio: stereo (left and right channels are separated)
    • Transmitter unit Dimension: 55 x 25x 8mm
    • Weight: 17g (excluding antenna)
    • Antenna connection: SMA jack (modules side
    • 1  transmitting module (TX only)
    • 1  5db antenna
    • 1  power cable
    • 1  video cable



    Requires:

    • 1  Receiver
