Beecore_BL F3 1S Brushless 4-in-1 Flight Controller Built-in OSD

share


$54.90
AUD $54.90

  • Flight controller:

    • Firmware: betaflight_3.2.1_OMNIBUS
    • CPU: STM32F303CCT6 (72MHZ, 256K FLASH)
    • Sensor: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
    • Power supply: 1S Lipo / LIHV battery input (DC 3.6-4.35V)
    • BEC: Built-in 5V / 0.5A step-up circuit
    • Compatible Receivers signal: PPM, SBUS, IBUS, Spektrum DSM2 / DSMX, 1024/2048.
    • Built-in OSD interface
    • Active buzzer interface
    • Dshot ESC ready
    • Blheli_S pass-through ready
    • Built-in voltage detection, alarm
    • Board size: 29MM * 29MM
    • Screw hole spacing: 36 * 36MM diameter 3.0MM
    • Board weight: 3.2 g
    • 4x JST1.25mm 3pin plug soldered



    ESC:

    • Power supply: 1S Lipo/LiHV battery
    • Current: 5A continuous peak 6A (3 seconds)
    • Support BLHeliSuite programmable
    • BLHELI_S Firmware target: O_L_5_REV16_6.HEX
    • Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

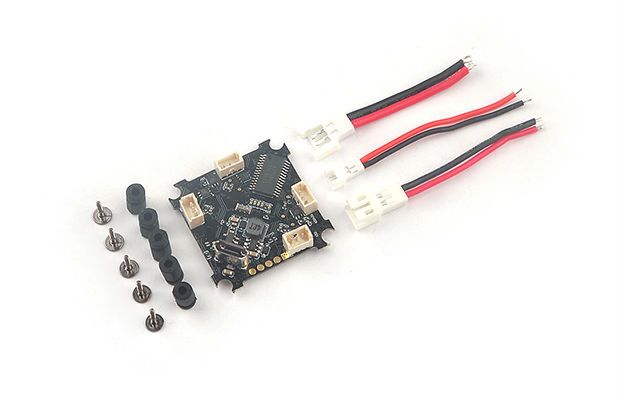

    • 1 x Beecore_BL F3 1S Brushless 4-in-1 Flight Controller Built-in OSD
