  • FPV 5.8G 400mW A/V Transmitting module, a good choice for avoiding interference for customers using 2.4G radio system.
  • Dimension and weight is similar to 200mw TX, yet the range is extended.
  • Compare to the 500mw version which with cooling fan installed, the 400mw version is lighter, and consuming less power (longer in-air time), also eliminated vibration to video transmitting system caused by cooling fan.
  • The 400mw version is a well balanced solution among weight, dimension, range, power consumption etc.

share


$164.60
AUD $164.60

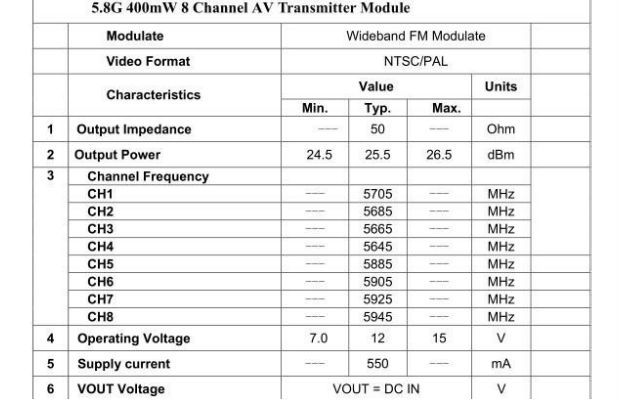

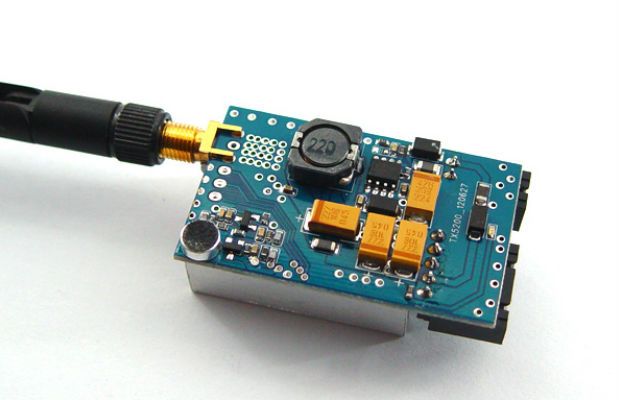

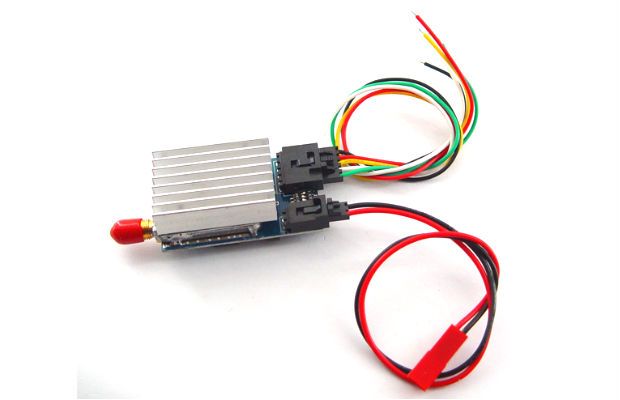

    • FPV 5.8G 400mW A/V Transmitter Module (TX)
    • Transmitting unit weight: 25g (excluding antenna)
    • video format supported: NTSC/PAL

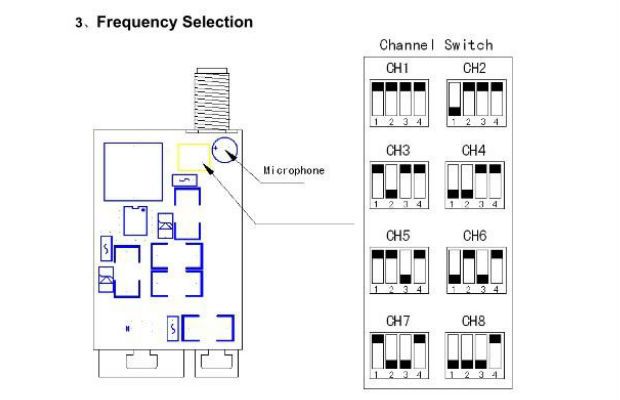

    • Working frequency: 5645-5945Mhz

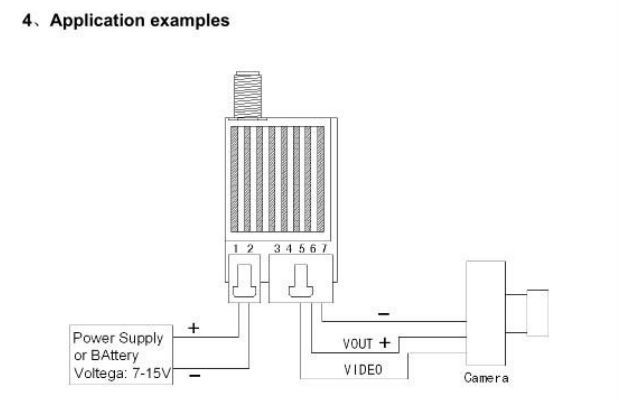

    • Power input: 7-15V (3S Lipo suggested, does NOT support 4S Lipo)
    • Transmitting current: 220mA
    • Dimension: 55*26*17mm (excluding antenna)

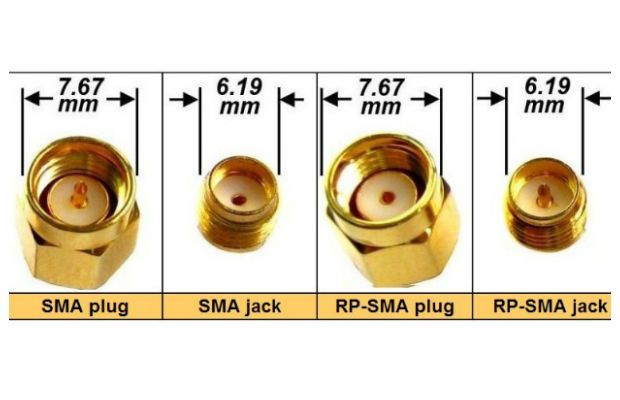

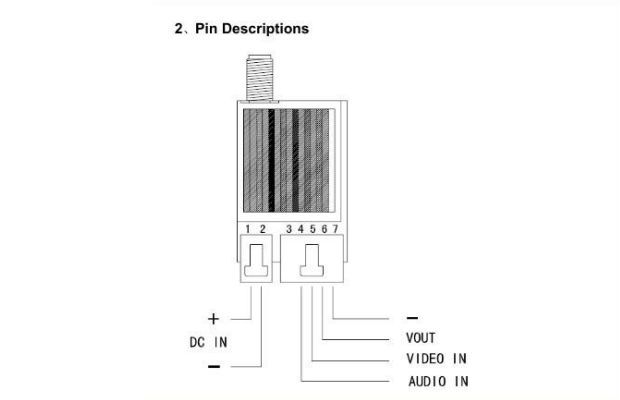

    • Antenna connection: SMA  jack (TX module side) see pictures for connector type diagram

    Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

  • Includes:

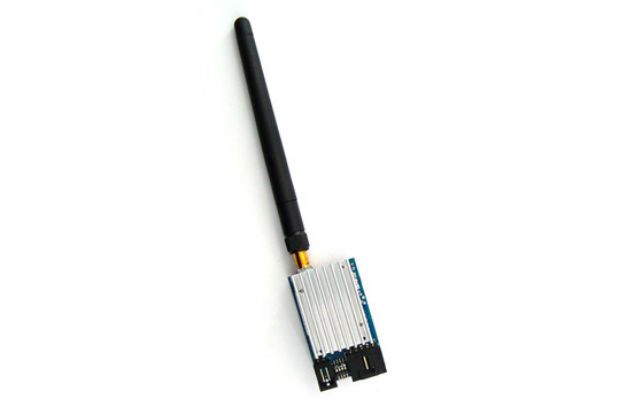

    • 1 x transmitting unit (TX) TS353
    • 1 x TX antenna (2db)

    Requires:

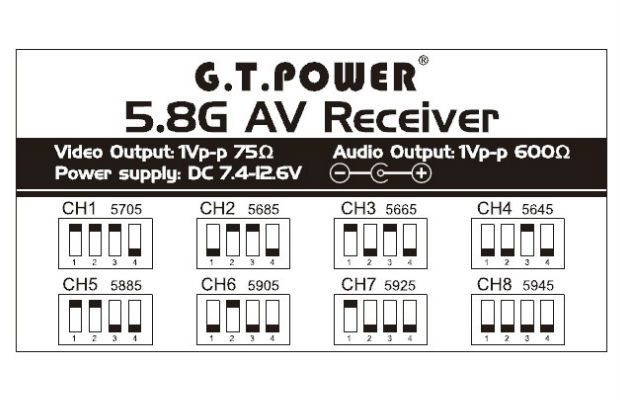

    • 1 x receiving unit (RX)

    * No instruction manual supplied with this product.
