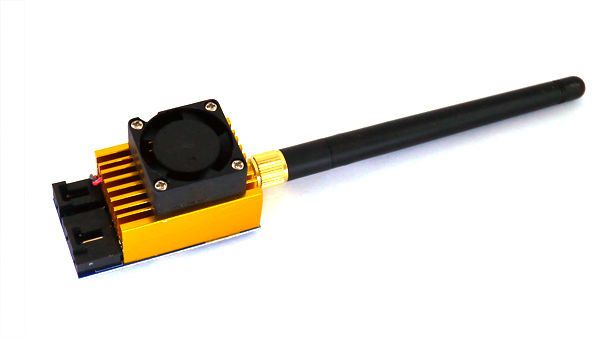

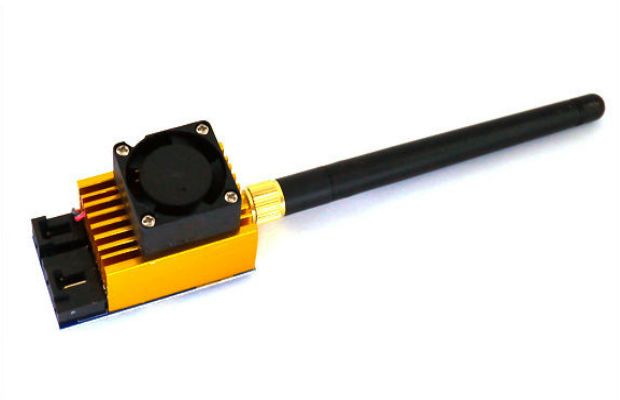

FPV 5.8G 600mW A/V Transmitting module, Golden edition.

Special features:

  • Utilized ball bearing fan, noise and vibration is greatly reduced.
  • Ground range up to 2KM with stable video transmitting. (Normally air to ground range is much longer than ground to ground distance)

share


$145.00
AUD $145.00
    • FPV 5.8G 600mW A/V Transmitter Module (TX) - Golden Edition
    • video format supported: NTSC/PAL

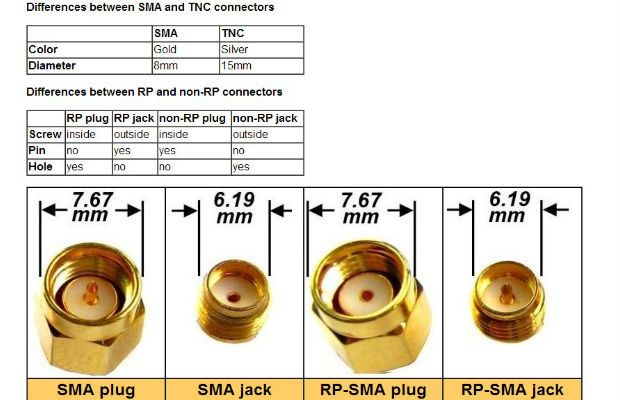

    • Antenna connection: SMA, jack (receiver side) See connector type diagram
    • Power input: 7.4-13V (3S Lipo suggested, does NOT support 4S Lipo)
    • Transmitting power: 600mA (working current 230mA @12V)
    • Weight: 52g/ 1.8oz
    • Dimension: 59x30x33 (excluding antenna)

    Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

    The TX antenna is intentionally glued at factory, please do not try to remove it, TX damage due to replacing/removing the antenna is NOT covered by warranty.

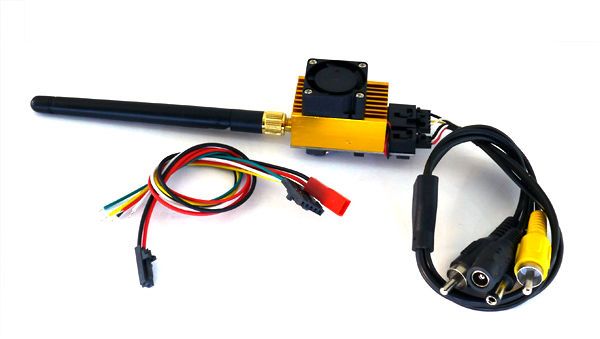

  • Includes:

    • 1 x transmitting unit (TX)
    • 1 x TX antenna (2db)

    * No instruction manual supplied with this product.

    Requires:

    • 1 x receiving unit (RX)
