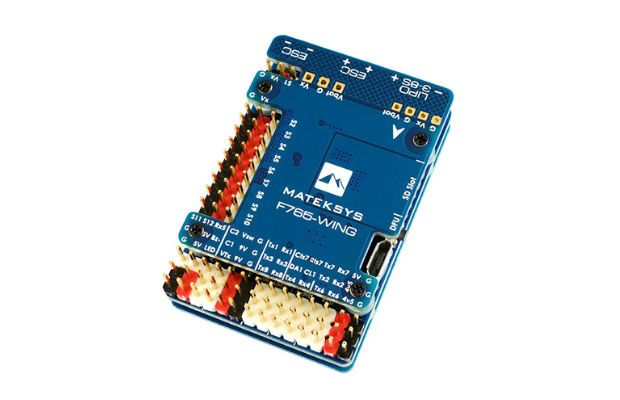

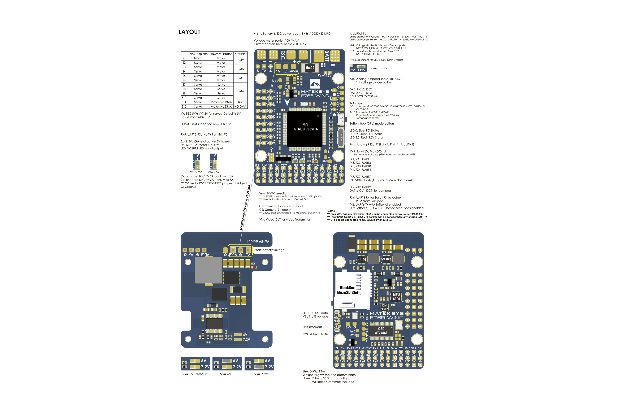

Matek F765-WING Flight Controller W/OSD

• MCU: STM32F765VIT6, 216MHz , 512KB RAM, 2MB Flash
• IMU: MPU6000 (SPI1) & ICM20602 (SPI3)
• Baro: BMP280 (I2C2)
• OSD: AT7456E (SPI2)
• Blackbox: MicroSD card slot (SDIO)
• 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
• 1x Softserial1_Tx (INAV)
• 12x PWM outputs (S1~S10 support Dshot)
• 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
• 2x I2C
• 1x SPI4 breakout
• Switchable Dual Camera Inputs
• Switchable 5V/9V(12V) for Camera/VTX
• High-precision Current Sense
• ADC VB2 voltage divider: 1K:10K
• ADC AirSpeed voltage divider: 10K:10K
• TR/SA VTX control: Yes
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: Yes
• Analog Airspeed sensor: Yes
• Digital Airspeed sensor: Yes
• FC Firmware

INAV Target: MATEKF765
ArduPilot(ChiBiOS) Target: MATEKF765-WING
PDB

Input voltage range: 9~36V (3~6S LiPo) w/TVS protection
2x ESC power pads
Battery Voltage Sensor: 1:10 (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
Current Senor: 132A, 3.3V ADC (Scale 250 in INAV, 40 A/V in ArduPilot)
BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A
BEC 9V /12V output

Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
BEC Vx output

Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 8 Amps, Max.10A
BEC 3.3V output

Designed for Baro / Compass module and Spektrum RX
Linear Regulator
Continuous current: 200mA
Physical

Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 54 x 36 x 13 mm
Weight: 26g
