Matek GPS Module M8Q-5883 / 4-6V W/ Compass

  • 72-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
  • On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
  • - Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity

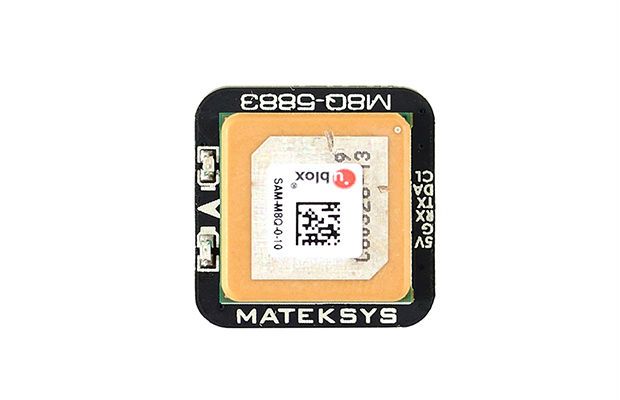

  • Build-in embedded GNSS patch antenna, low power consumption
  • The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size to be integrated in any design.

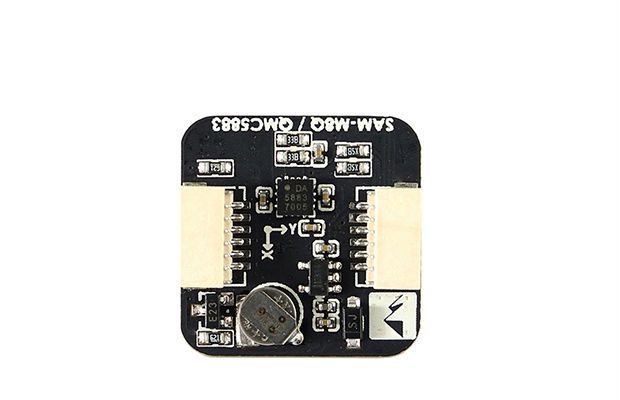

  • Magnetic sensor QMC5883L integrated

share


$130.10
AUD $130.10
    • - Input voltage range: 4~6V
    • - Uart (Tx,Rx) interface for GPS SAM-M8Q
    • - I2C (DA,CL) interface for Compass QMC5883L
    • - Battery for HOT module start
    • - Power LED(Red) & Time pulse LED(Blue)
    • - Dimensions: L20 x W20 x H10 mm
    • - Weight: 7 gram
    • - Supported by INAV/Betaflight/Ardupilot, ect.



    Max navigation update rate

    • - Single GNSS up to 18 Hz
    • - 2 Concurrent GNSS(GPS & GLONASS) up to 10 Hz
    • - Horizontal position accuracy(GPS & GLONASS) 2.5 m CEP
    • - Velocity accuracy 0.05m/s
    • - Cold start 26 s
    • - Aided cold starts: 2 s
    • - Hot start 1 s



    Sensitivity

    • - Tracking & Navigation: –165 dBm
    • - Reacquisition: –158 dBm
    • - Cold start: –146 dBm
    • - Hot start: –155 dBm



    Tips

    •   GPS, GLONASS, SBAS, QZSS are enabled by default
    •   Blue PPS LED blinking(1Hz) means 3D fixed
    •   update rate 1Hz & baudrate 9600 default
    •   Baud 9600~115200 supported by INAV/BF/Ardupilot
    •   update rate 5Hz with INAV UBLOX Protocol
    •   update rate 10Hz with INAV UBLOX7 Protocol
    •   Compass Alignment(Arrow forward):
    •   INAV/BF: CW 270° Flip
    •  Ardupilot/Mission Planner: Rotation None
    •  BF doesn't support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or last.
    •  No need compass for Fixed wings with INAV firmware
    •  The scratches on ceramic antenna are the result of tuning the antenna by ublox.

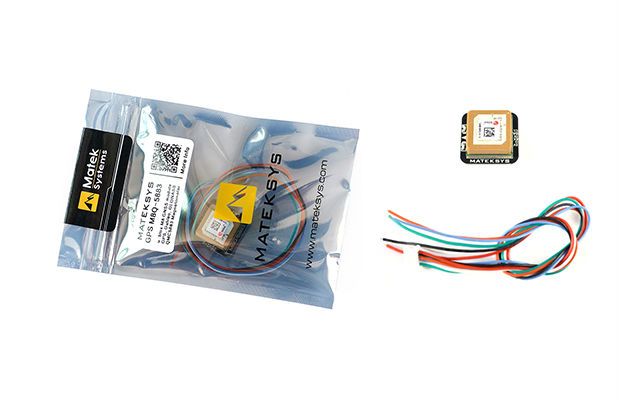

    • 1 x GPS module
    • 1 x connection cable
