Pixhawk PX4 Multi-mode Open Source Autopilot Flight Controller (V2.43)

Pixhawk advanced autopilot system designed by PX4 and manufactured by 3D Robotics. It features advanced processor and sensor technology andreal-time operating system, Delivering incredible performance, flexibility, and reliability for controlling any UAV vehicle.

  • Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
  • 14 PWM/servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
  • Abundant connectivity options for additional peripherals (UART, I2C, CAN)
  • Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply
  • Backup system integrates mixing, providing consistent autopilot and manual override mixing modes
  • Redundant power supply inputs and automatic failover
  • External safety button for easy motor activation
  • Multicolor LED indicator
  • High-power, multi-tone piezo audio indicator
  • microSD card for long-time high-rate logging

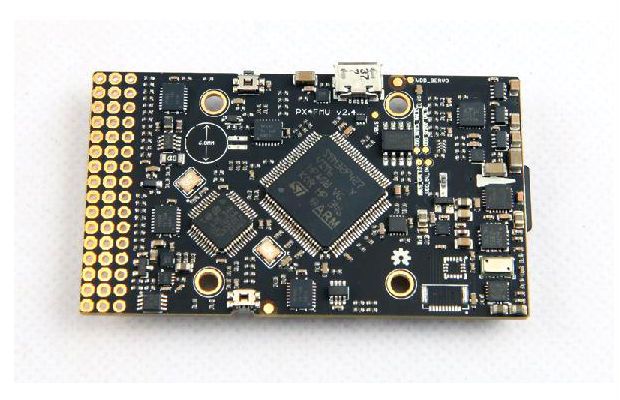

Microprocessor:
  • 32-bit STM32F427 Cortex M4 core with FPU
  • 168 MHz/256 KB RAM/2 MB Flash
  • 32 bit STM32F103 failsafe co-processor

Sensors:

  • ST Micro L3GD20 3-axis 16-bit gyroscope
  • ST Micro LSM303D 3-axis 14-bit accelerometer / magnetometer
  • Invensense MPU 6000 3-axis accelerometer/gyroscope
  • MEAS MS5611 barometer

Interfaces:

  • 5x UART (serial ports), one high-power capable, 2x with HW flow control
  • 2x CAN
  • Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
  • Futaba S.BUS® compatible input and output
  • PPM sum signal
  • RSSI (PWM or voltage) input
  • I2C®
  • SPI
  • 3.3 and 6.6V ADC inputs
  • External microUSB port

Power System:

  • Ideal diode controller with automatic failover
  • Servo rail high-power (7 V) and high-current ready
  • All peripheral outputs over-current protected, all inputs ESD protected
* This controller doesn't come with GPS, customers can use their own standard GPS module (with compass).


share


$299.99
AUD $299.99
    • Weight: 38g (1.31oz)
    • Width: 50mm (1.96")
    • Thickness: 15.5mm (.613")
    • Length: 81.5mm (3.21")
    • Current sensor capacity: 100A (XT60 connector)



    Pixhawk is a PPM-input autopilot, which means that it gets RC input from a single cable to the receiver, either via the PPM port, the Futaba S.BUS port, or the special satellite receiver port for Spektrum gear.

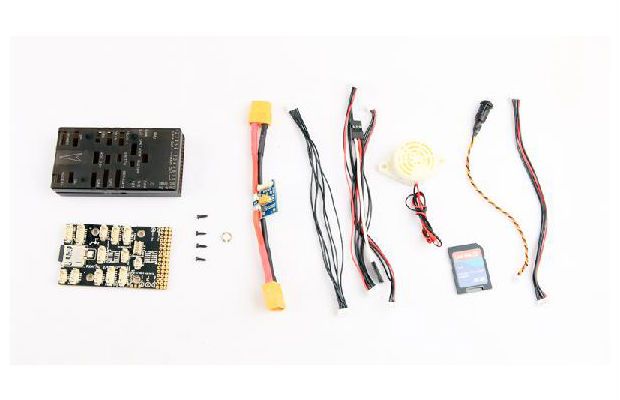

    • 1x Pixhawk autopilot main board

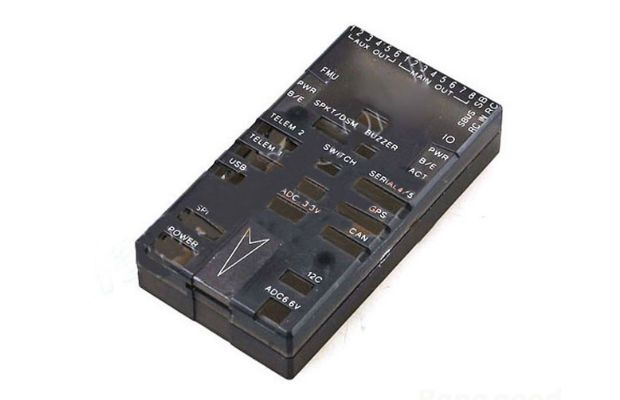

    • 1 x outer case
    • 1 x 100A current sensor
    • 1 x Buzzer
    • 1x Safety switch button
    • 1x SD card (512M)
    • 1 x wire set



    Requires:

    • 1 x GPS (with compass)
  • Domestic Shipping starts at $8.00 for this item plus $3.00 for each additional item . International Shipping starts at $10.00 for this item plus $3.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
