Out of stock

SP Pro Racing F3 Delux 10DOF Flight Controller W/ M8N GPS, OSD

share


$141.00
AUD $141.00
    •  Next-generation hardware for your multi-rotor
    •  The Seriously Pro Racing F3 Flight Controller (SPRacingF3) was designed to give awesome flight performance based on tried and tested sensors whilst also providing unparalleled and I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU.
    • - Versions: ARCO(6 DOF).
    • - Flight Performance: The SPRacingF3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it's on rails.
    • - Configurable. The SPRacingF3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).
    • - Flight Logging. On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork.
    • - Developer Friendly.Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
    • - Broad RC receiver Support. Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).
    • - Battery Monitoring. Battery monitoring ports for voltage and current.
    • - I2C Port. I2C port always powered, perfect for external sensors or always-on OLED Screen.
    • - No-Compromise I/O.Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - all at the same time!
    • - Tiny and lightweight. The SPRacingF3 has a standard 36x36mm form-factor with 30.5mm mounting holes and weighs just 6 grams.
    • - Next-Generation CPU. The SPRacingF3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time.
    • Loop times up to ~2x as fast as previous-generation STM32F1 based boards.
    • - OneShot ESC. Full support for OneShot ESCs for easy PID tuning and a sharper response.
    • - Programmable LED. Dedicated output for programmable LEDs - great for orientation, racing and night flying.
    • - Sonar. Sonar support for precision low-altitude hold.
    • - Buzzer port for audible warnings and notifications.
    • - The SPRacingF3 gives you all the features you need for the heart of your aircraft, whether you're into FPV racing, acrobatic flying or aerial photography it's perfect.
    • - Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, planes and more.



    The SPRacingF3 Design is:



    • - Practical - Easy to access connectors and solder pads.
    • - Configurable - Choose to use connectors, solder pads or pins.
    • - Stackable - Mount to your PDB or OSD.
    • - Compact - Only 36x36mm.
    • - Professional - Symmetrical, Neat and Tidy.
    • - 36x36mm board with 30.5mm mounting holes
    • - STM32F303 CPU, 72Mhz inc FPU
    • - High-Capacity Flash (Acro and Deluxe)
    • - MPU6050 accelerometer/gyro
    • - MS5611 barometer (Deluxe only)
    • - HMC5883 compass (Deluxe only)
    • - MicroUSB socket
    • - 2x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
    • - 8x 3pin though-holes for pin headers for ESC/Servo connections
    • - 2x 4pin though-holes for pin headers for 2x serial ports
    • - 1x 2pin though-holes for pin headers for battery voltage
    • - 1x 2pin though-holes for pin headers for buzzer
    • - 1x 4pin JST-SH socket for I2C
    • - 1x 4pin JST-SH socket for SWD debugging

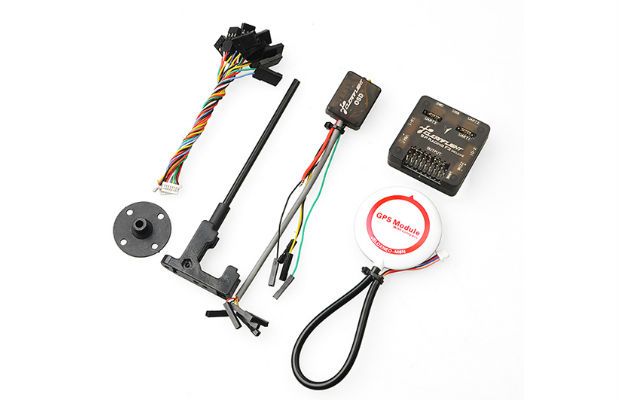

    • 1x flight controller with case
    • 1 x M8N GPS
    • 1 x OSD module
  • Domestic Shipping starts at $0.00 for this item plus $5.00 for each additional item . International Shipping starts at $10.00 for this item plus $5.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
