TBS CORE PNP50

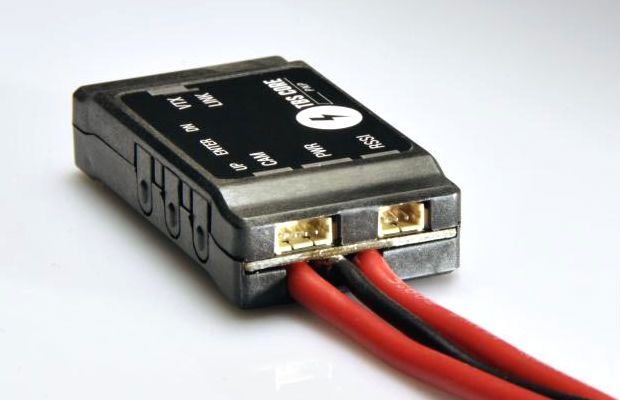

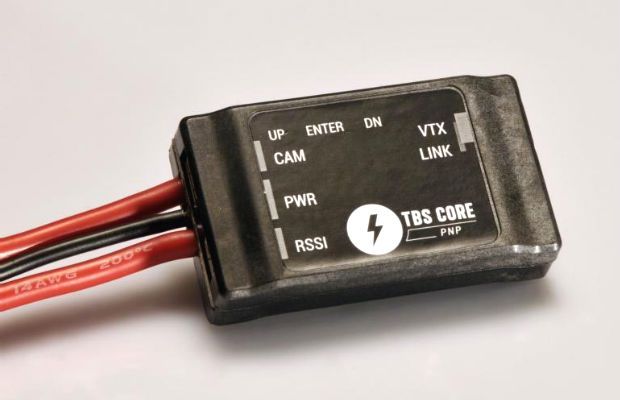

The TBS CORE PNP50 is a consequent progression to the TBS CORE, tailor made for lightweight FPV aircraft such as the TBS CAiPiRINHA. The main advantage over the standard CORE is the connectors and supplied cables. No more soldering required to install this puppy. It supplies a (selectable) 5V or 12V to video transmitter and fpv camera regardless of input voltage (2S to 10S). The TBS CORE PNP50 can supply video transmitters with up to 1W of emitted power (EIRP) and a standard FPV camera - or charge a GoPro camera.

The included OSD provides real-time info on battery status, flight time and RSSI. If your setup is sporting an EzUHF 8ch receiver (diversity or lite), the digital RSSI info can be displayed using the separate EzUHF link cable. The onboard microphone transmits the on-board sounds down your video transmitter.

By including a 50A current sensor into a tiny form factor it is an ideal companion for your quads and R/C aircraft. The current sensor can be calibrated from the OSD, but comes pre-calibrated out of the box. All connectors are now plug & play, requiring no soldeirng whatsoever to get the product running.

In a nutshell, the TBS CORE PNP50 makes FPV setups super-easy and is a safety feature every small FPV plane should have. No more cutouts due to low voltage, single battery FPV systems prevent you from forgetting to charge spare batteries, the simplified wiring reduces points of failure.

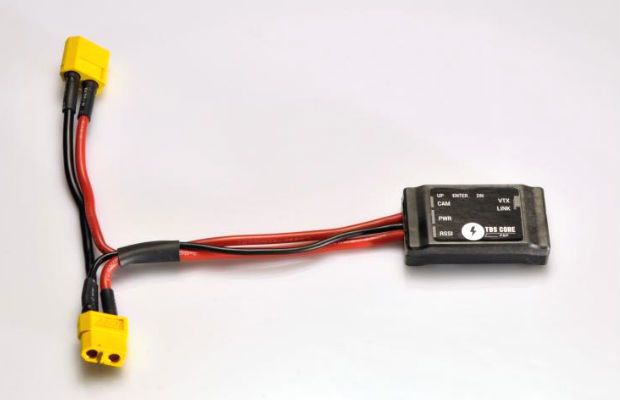

Installation is fool proof: Plug your battery into the JST / BEC connector and power all your plane's electronics from the other JST / BEC connector. The current sensor automatically measures the current passing through this cable. Plug in the VTx (5V default) and the camera (5V default!).


share


$134.99
AUD $134.99
    • Plastic enclosure and connector-sockets (Molex Picoblade) for all ports
    • 2x 2S - 10S input (OSD measures up to 6S)
    • Constant 5V @ max. 2A, 12V @ max. 600mA (individually, not in combination!)
    • 42x27mm, 12g
    • Switching power with >85% efficiency
    • OSD with integrated current sensor, RSSI and battery voltage display
    • EzUHF digital link support
    • Onboard microphone included
    • Output power limitation protects your equipment in case of reverse polarity
    • Extremely low ripple and low RF noise, two stage filtered and shielded.
    • Since this is a switching regulator it does not need to be ventilated or exposed and can be buried in your plane for maximum durability.

    *The differences between TBS core PNP25 and the TBS core PNP50 is one has a 50A current sensor, the other has 25A sensor built in. the 25A comes with a JST plug, the 50A comes with XT60 plugs. The 25A is preconfigured for a 12V camera, the 50A for a 5V camera. both can be changed to the other by opening it up and changing a solder-jumper like in the other COREs


    CUSTOMIZATION OPTIONS

    The cables required for connecting the CORE PNP50 to your camera and video transmitter are included in the camera and video transmitter. In case you are just buying the TBS CORE PNP50 you may choose to add these cables.

    The EzUHF Link cable is required to connect your EzUHF 8ch Lite or EzUHF 8ch Diversity receiver to the TBS CORE PNP50. The 4ch EzUHF receiver does not provide the link port!

    For powering 12V cameras (e.g. FPV CCD cameras) or 12V transmitters, open the TBS CORE PNP50's rear 4 screws and change the solder jumpers at the bottom of the internal board. The solder jumpers are conveniently labelled.

    If you'd like to pass external telemetry or audio from an external microphone, you can set the solder jumper for this at the bottom of the internal board as well. The audio in is the white cable on the CAM port.
  • Domestic Shipping starts at $10.00 for this item plus $5.00 for each additional item . International Shipping starts at $25.00 for this item plus $5.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
