3rd Axis Expansion Board For BGC

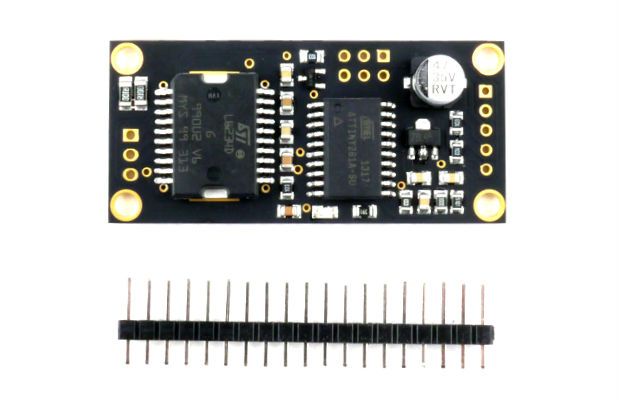

3rd Axis Expansion Board for BGC Universal 2-axis/ 2-axle Brushless Gimbal Controller

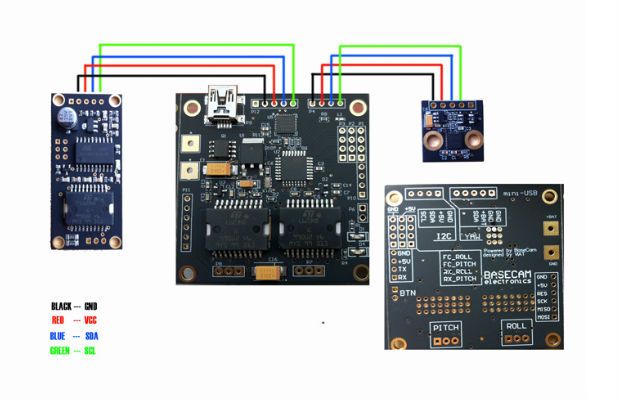

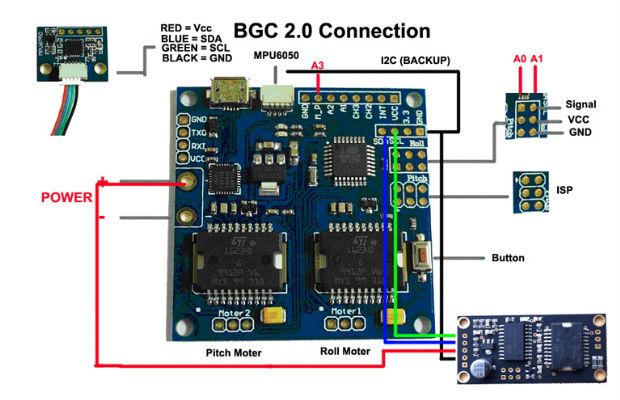

Connection diagram (see images)
(this product is the 3rd axis expansion board only, other accessories are not included and for illustration purpose only)

Note about brushless gimbals & Controllers

Brushless gimbals and controllers are very new to the market and it is an emerging technology. You will need some patience and effort to get it to work as seen on youtube etc.. THIS IS NOT A PLUG AND PLAY DEVICE!
You will need some understanding of Microsoft windows drivers, software settings and tuning the gimbal software to your liking and to suit your multirotor.
Getting things to work the way it's supposed to will be YOUR RESPONSIBILITY. Please understand this before you purchase any Brushless Gimbal Related Item.
