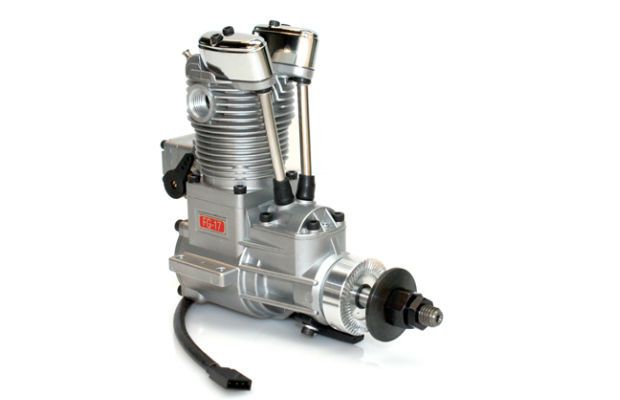

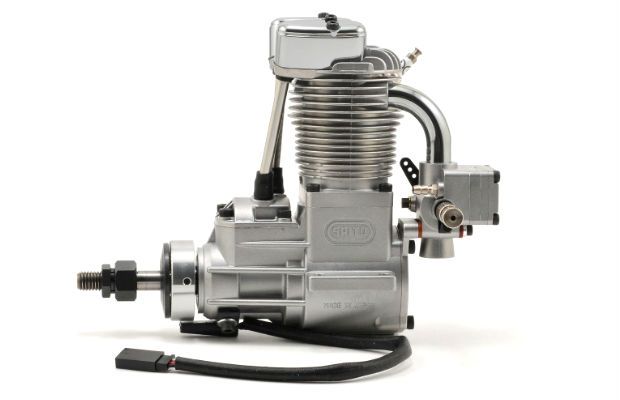

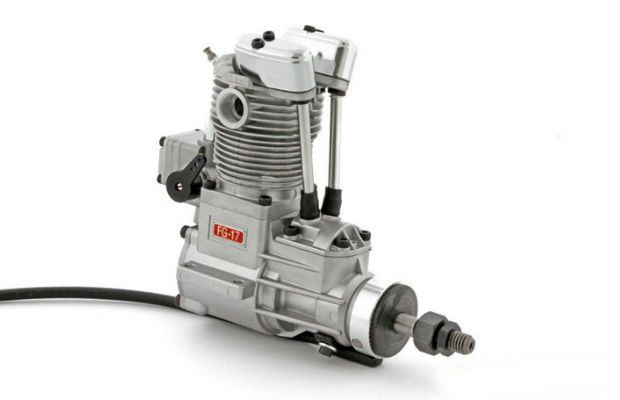

FG-17 4-Stroke Gasoline Single Engine

Saito FG- 17 is a 4- stroke gasoline engine exclusively for model airplanes which is designed with emphasis on high performance, durability and weight saving. Its part are modified to adapt to the gasoline engine based on FA- 100 glow engine, equipped with carburetor with pump, ignition system and small-size spark plug matched to our engine. Moreover for the airplane on which FA- 100 is installed, FG- 17 can be replaced easily with minimal change such as fuel tank and lines to gasoline-resistant ones.

  • Fuel efficient.
  • Low cost offuel
  • Easy to install "smoke system" (by usingmuffler pressure or crank pressure)
  • The airframe could not be soiled easily.

share


$738.00
AUD $835.00 Now AUD $738.00

  • Benchmark Prop: 15 x 6 @ 9200 rpm
    Bore: 1.14 in (29.0mm)
    Carb Type: 2 Needle Saito Gas Carburetor
    Crank Type: Threaded
    Crankshaft Threads: 8 x 1.25mm
    Cylinder Type: AAC with Ring
    Cylinders: Single
    Displacement: 1.05 cu. in. (17.20 cc)
    Fuel Type: Gas
    Ignition Weight: 3.5 oz (100g)
    Muffler Threads: 12mm
    Muffler Type: Cast
    Muffler Weight: 2.1 oz (60 g)
    Oil Type & Content : Gas-oil mix of 20:1
    Plug Type: Four Stroke 1/4-32 plug
    Prop Range: 14 x 8 - 16 x 6
    RPM Range: 2,000 - 9,500
    Stroke: 1.02 in (26.0mm)
    Total Weight: 27.2 oz (770 g)
    Type: 4-stroke

  • Manual download click HERE
