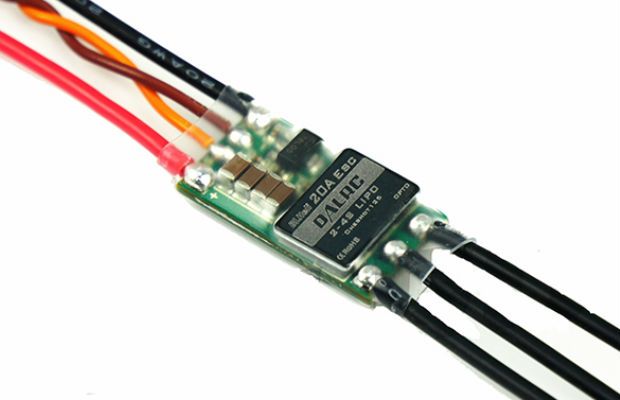

DALRC BL20A 2-4S 20A ESC for Multi-rotors (BLHeli Firmware, support OneShot mode)

  • Support OneShot super high speed control, rotating in two directions (for 3D multicopter), brake, degaussing compensation, closed loop control etc advanced functions.
  • Optimised based on BLHeli firmware, good linearity and smooth starting.
  • Optimised for multicopter application, good filtering, also well support fixed-wing airplanes and helicopters.
  • Multiple protections: Low voltage protection, overheat protection and signal lost protection etc.
  • Lost found function: When the throttle keeps at low position, after some time, the motor will buzz to make it easier for you to locate the aircraft.
  • Throttle range re-calibration capable to best suit different receivers.
  • Some parameters can be set by either program card or transmitter.

Hint: When use CC3D flight control, requested by the flight control itself, you must use PPM or S.bus receiver to work in OneShot125 mode.

share


$81.50
AUD $81.50

  • Continuous current: 20A
    Burst current: 30A (for 5 seconds)
    Power input: 2-4S Lipo
    BEC output: No
    Firmware: BLHeli (13.2 stable version)
    Bootloader: ATMEL BLheli Bootloader (support Naze32 firmware reflashing)
    Weight: 7g (including wire)
    Dimension: 23 x 12 x 4.5mm

    Dimension: 45 x 15 x 5mm
    Weight: 7.4g (including wires)

    • 1 x DALRC ESC



    Requires:

    • 1 x receiver (RX)
