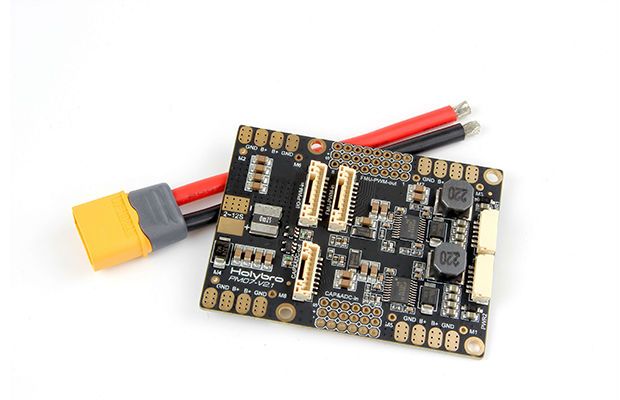

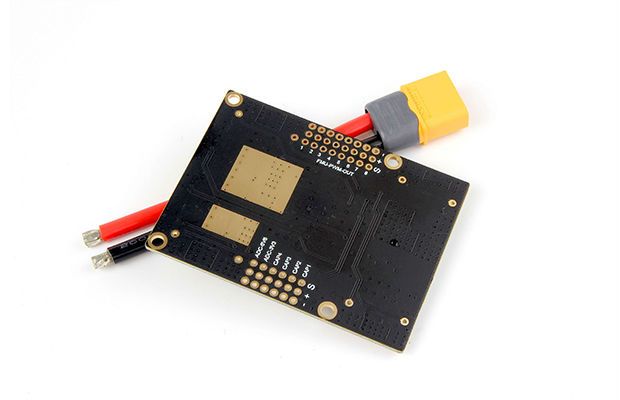

Pixhawk PX4 Flight Controller Power Module (PM07)

The Power Management Board (PM Board) serves the purpose of a Power Module as well as a Power Distribution Board. In addition to providing regulated power to Pixhawk 4 and the ESCs, it sends information to the autopilot about battery's voltage and current supplied to the flight controller and the motors.

share


$138.60
AUD $138.60
    • PCB Current: total 120A outputs (MAX)
    • UBEC 5v output current :3A
    • UBEC input voltage : 7~51v (2~12s LiPo)
    • Dimensions:68*50*8 mm
    • Mounting Holes:45*45mm
    • Weight: 36g

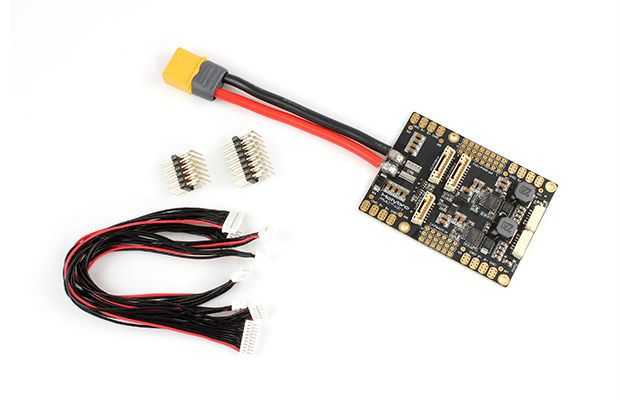

    • PM07 board*1
    • 80mm XT60 connector wire*1
